BC101,BC102,BC120

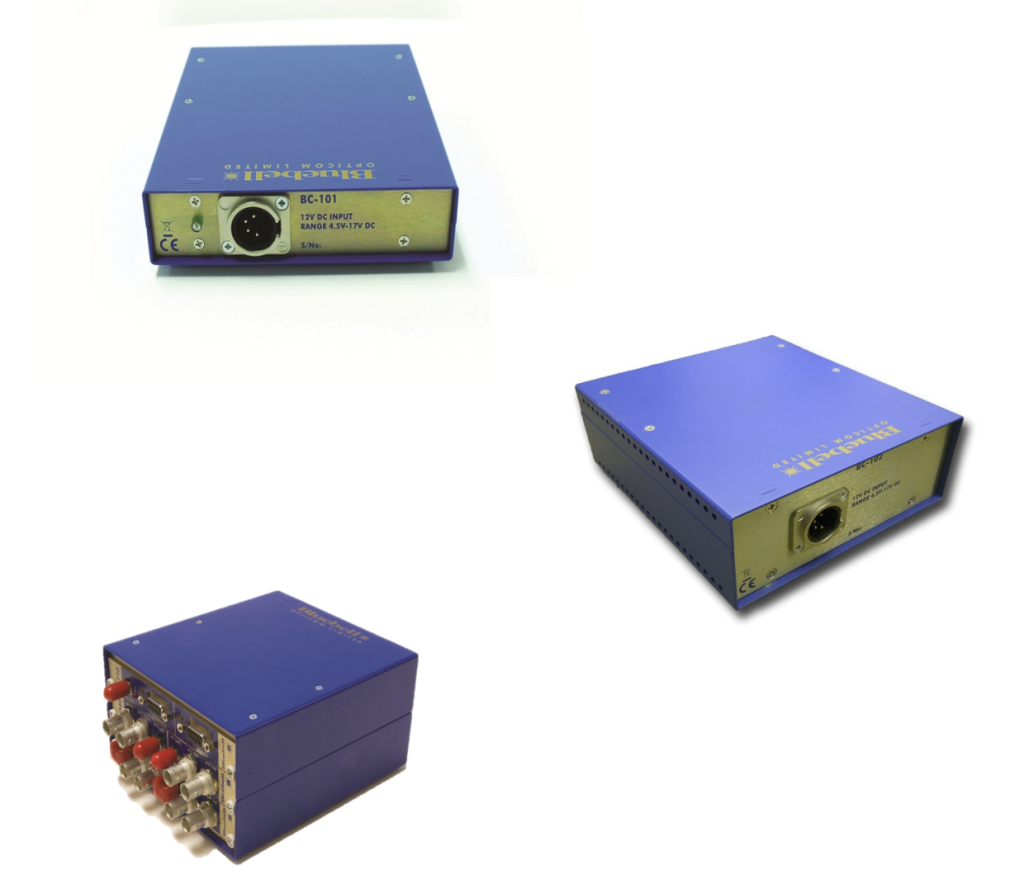

Stand-Alone Enclosures – BC101 Single Slot | BC102 Dual Slot | BC120 Triple Slot
Description
The BC101, BC102, and BC120 enclosures are designed to provide robust, portable housing for Bluebell BC Series cards, making them ideal for applications where equipment rack space is limited or unavailable.
- BC101: A compact, die-cast aluminium enclosure designed to house a single BC Series card.
- BC102: A die-cast aluminium enclosure accommodating up to two single-slot BC Series cards or one dual-slot card. Both the BC101 and BC102 feature a 4-pin XLR power connector, making them particularly suited for Outside Broadcast (OB) environments or remote applications.
- BC120: A durable steel enclosure capable of housing up to three single-slot BC Series cards. Power is supplied via an IEC mains inlet, ensuring compatibility with standard equipment racks and power sources.
All enclosures are engineered for reliability and ease of use, offering a practical solution for deploying interface cards in demanding environments. Whether for portable setups, OB applications, or locations with space constraints, the BC101, BC102, and BC120 deliver flexibility and robust performance.
Specification
| General Specification | |
| Dimensions | BC101 133 mm (w) x 33 mm (h) x 148 mm (d)
BC102 133 mm (w) x 53 mm (h) x 148 mm (d) BC120 134 mm (w) x 72 mm (h) x 148 mm (d) |
| The BC101 is a die cast Aluminium enclosure designed to house a BC Series single slot card.
The BC102 is a die cast Aluminium enclosure designed to house two BC Series single slot cards or one dual slot card.
The BC101 or BC102 enable interface cards to be located where equipment rack space is at a premium or is not available. Each unit has a 4 pin XLR for power which is particularly useful in OB applications.
The BC120 is a steel enclosure designed to house up to three BC Series single slot cards.
The BC120 enables interface cards to be located where equipment rack space is at a premium or is not available. The BC120 has power supplied via an IEC mains inlet.
|
|
Downloads
Ordering info
| BC101 | Single Slot Chassis with 4 pin XLR |
| BC102 | Double Slot Chassis with 4 pin XLR |
| PS12 | 10 watt Plugtop PSU. Fitted with 4 pin XLR and IEC inlet. |
| BC120 | Triple Slot Chassis with Universal Mains Power Supply and IEC inlet. |
