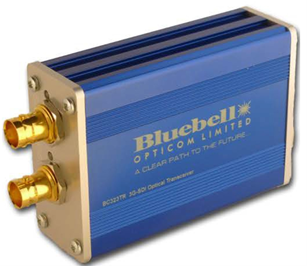

BC323TR
Dual Electrical-to-Optical and Optical-to-Electrical Transceiver Module 3G-SDI, HD-SDI, SD-SDI, ASI
Description
The BC323TR is a versatile transceiver module designed to convert one 3G-SDI, HD-SDI, SD-SDI, or ASI signal from electrical to optical format, while simultaneously converting a separate optical signal to electrical format. Each input signal is auto-sensed, equalised, and reclocked before being transmitted over either a single optical fibre or a BNC connection, ensuring reliable signal transport and exceptional performance.
Housed in a compact and robust enclosure, the BC323TR is ideal for Outside Broadcast, live events, and studio applications. Power is provided via the separately supplied PS12 unit, featuring an IEC mains inlet for easy integration into standard equipment racks. The BC323TR also supports a 4-pin XLR connector, enabling power from external DC sources within the range of 4.5 to 17 V.
Capable of handling data rates from 50 Mb/s to 3 Gb/s, the BC323TR can operate in non-reclocking mode when non-standard signals are presented. Its dual-channel capability and compatibility with singlemode, WDM, and CWDM variants make it suitable for a wide range of fibre optic applications.
The BC323TR integrates seamlessly with other Bluebell cards and enclosures, making it an excellent choice for expanding or upgrading broadcast systems.
Specification
| Electrical Input | |
| Standards | SMPTE 424M , SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI |
| Equalisation | Automatic to 100 m @3 Gb/s
Automatic to 200 m @ 1.485 Gb/s Automatic to 300 m @ 270 Mb/s Equaliser and reclocking can be bypassed to support data rates down to 50 Mb/s |
| Connector | 1 x 75 Ohm BNC per IEC 60169-8 Amendment 2 per channel |
| Return loss | > 15 dB@ 1.485 Gb/s |
| Format | Reclocked (with bypass to support data rates down to 50 Mb/s) Please note that the factory default unless specified is for units to be supplied in reclocking mode. Non-reclocking settings are accessed via module pcb |
| Optical Output | |
| Connector | 1 x female LC as standard per channel |
| Wavelength | 1310-1550 nm (See Ordering Info) |
| Optical power | -2 dBm@ 1310 nm (typical)
-2 dBm @ 1510 nm (typical) 0 dBm @ CWDM (typical) |
| General module specifications | |
| Length | 92 mm 142 mm Extended enclosure |
| Width | 64 mm |
| Height | 30 mm Excluding connectors |
| Weight | 100 g |
| Operating Temp | -30 to +70 °C |
| Power | 2W |
| Voltage | 4.5 to 17 V de |
| Signal Detect | LED on for signal loss |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC |
| Electrical | Complies with EN 61000-6-1, EN61000-6-2 |
| Laser Safety | Complies with Class 1 laser product 24 CFR 1040.10 & 1040.11 |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 years |
| Electrical Output | |
| Standards | SMPTE 424M , SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI
Automatic rate selection for 3G-SDI, HD-SDI and SD-SDI data rates |
| Connector | 1 x 75 Ohm BNC per IEC 60169-8 Amendment 2 per channel |
| Return loss | > 15 dB@ 1.485 Gb/s |
| Format | Reclocked (with bypass to support data rates down to 50 Mb/s) |
| Polarity | 1 x Non inverting, 1 x inverting output |
| Signal Level | 800 mV +/- 10% |
| DC Offset | 0 +/- 0.5 V |
| Jitter | <0.15 UI line equalized |
Downloads
Ordering info
| BC323TR/M | Multimode Dual Channel 3G/SDI, HD/SDI Fibre Optic Transceiver Module,
Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI (850nm). Fitted with LC connectors. PS12 power supply ordered separately. |
| BC323TR/S/13/13 | Singlemode Dual Channel 3G/SDI, HD/SDI Fibre Optic Transceiver Module,
Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI (1310nm). Fitted with LC connectors. PS12 power supply ordered separately |
| BC323TR/S/13/15 | Singlemode Dual Channel 3G/SDI, HD/SDI Fibre Optic Transceiver Module,
Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI (1550nm). Fitted with LC connectors. PS12 power supply ordered separately. |
| BC323TR/S/CWDM | Singlemode Dual Channel 3G/SDI, HD/SDI Fibre Optic Transceiver Module,
Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI. (Dedicated CWDM Tuned Laser, Wavelength to suit ITU Grid Spacing – see CWDM Ordering Matrix). LC connectors as standard. PS12 power supply ordered separately. Each module has a transmitter at the specified wavelength and a separate wideband receiver |
| PS12 | 10 watt Plugtop PSU for the BC313/323/550 Product Range. Fitted with 4 pin XLR.
Voltage range 100-240 V ac 50/60 Hz |
