BC360T
Electrical to Optical Transmitter 3G-SDI, HD-SDI, SD-SDI, ASI
Description

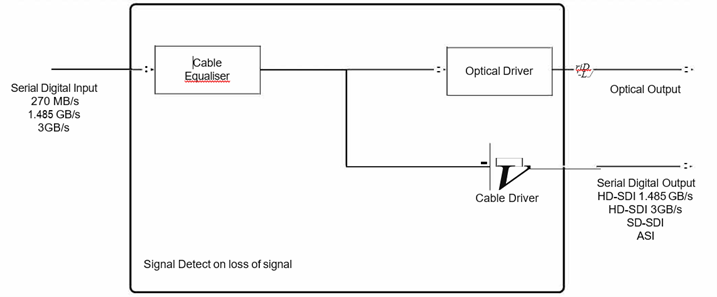

The BC360T is a transmitter for the conversion of 3G-SDI, HD-SDI, SD-SDI and ASI signals into fibre optical cable. The incoming signal is auto-sensed and then equalised prior to conversion and transmission down a single optical fibre. All Bluebell cards are designed to retain maximum integrity of the signal path offering excellent jitter free optical transport. In non-reclocking mode the unit can operate with data rates from 50 Mb/s to 3 GB/s. The BC360 cards suit applications where customers wish to keep main and reserve channels on separate physical cards for redundancy. The BC360T is available in singlemode, WDM and CWDM variants to suit any fibre application. The BC360T occupies a single slot in the BC100-3RU 19″ rack-mounting frame which can hold up to 15 single slot cards. Some BC Series processing cards have dual functionality allowing up to 30 channels of video to be transmitted or received from a single 3RU frame Signal and card monitoring is achieved through SNMP monitoring in the BM102i network card, or through the BM102i network monitoring webpages. For stand alone applications the BC360T can be housed in an individual rugged enclosure.
Specification
| Electrical Input | |
| Standards | SMPTE 424M , SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI |
| Equalisation | Automatic to 100 m @3 Gb/s
Automatic to 200 m @ 1.485 Gb/s Automatic to 300 m @ 270 Mb/s Equaliser and reclocking can be bypassed to support data rates down to 50 Mb/s |
| Connector | 75 Ohm BNC per IEC 60169-8 Amendment 2 |
| Return loss | > 15 dB@ 1.485 Gb/s |
| Optical Output | |
| Connector | 1 x female LC as standard per channel |
| Wavelength | 1310-1550 nm (See Ordering Info) |
| Optical power | -2 dBm@ 1310 nm (typical)
-2 dBm @ 1510 nm (typical) 0 dBm @ CWDM (typical) |
| General module specifications | |
| Depth | 60 mm |
| Width | 20 mm 4TE |
| Height | 129 mm (3RU) |
| Weight | 100 g |
| Operating Temp | -30 to +70 °C |
| Power | 3W |
| Signal Detect | LED on for signal loss |
| No. of slots | 1 |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC |
| Electrical | Complies with EN 61000-6-1, EN61000-6-2 |
| Laser Safety | Complies with Class 1 laser product 24 CFR 1040.10 & 1040.11 |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 years |
| Electrical Output | |
| Connector | 75 Ohm BNC per IEC 60169-8 Amendment 2 per channel |
| Return loss | > 15 dB@ 1.485 Gb/s |
| Format | Driven active loop out |
| Polarity | Non inverting, |
| Signal Level | 800 mV +/- 10% |
| DC Offset | 0 +/- 0.5 V |
| Jitter | <0.15 UI line equalized |
Related products
Downloads
Ordering info
| BC360/M | Multimode 3G/SDI Fibre Optic Transceiver Card, Auto-Sensing for 3G-SDI, HD/SDI, SD/SDI, ASI. |
| BC360/S/13/WB | Singlemode 3G/SDI Fibre Optic Transceiver Card, Auto-Sensing for 3G-SDI, HD/SDI, SD/SDI, ASI (1310nm). |
| BC360/S/15/WB | Singlemode 3G/SDI Fibre Optic Transceiver Card, Auto-Sensing for 3G-SDI, HD/SDI, SD/SDI, ASI (1550nm). |
| BC360/S/CWDM/WB | Singlemode 3G/SDI Fibre Optic Transceiver Card, Auto-Sensing for HD/SDI, SD/SDI, ASI (CWDM Tuned Lasers). Each card has a transmitter at the specified wavelength and a separate wideband receiver. See “CWDM Ordering Matrix” for additional information on ordering. |
| Universal Chassis and Power Supplies | |
| BC100-3RU | 19″ 3RU Chassis for up to 15 BCxxx Cards with optional Network Monitoring and facility for Dual Redundant Power Supplies (not supplied). |
| BC100-3RU/48V | 19″ 3RU Chassis for up to 15 BCxxx Cards with optional Network Monitoring and facility for Dual Redundant Power Supplies (not supplied). Fitted with 48V dc input. |
| BM100 | Network Monitoring Card with GPI Output on a SCSI Connector for Slot-16 |
| BM101 | Network Monitoring Card with Ethernet connection for Slot-16 |
| PS65 | 90-250VAC Power Supply for BC100-3RU or BB100-3RU Chassis |
| BC160 | 19” 1RU Chassis for up to 6 BCxxx Cards. Includes Dual Redundant Power Supplies. Optional Network Monitoring |
| BC110 | Single Slot Chassis with Universal Mains Power Supply |
| BC120 | Triple Slot Chassis with Universal Mains Power Supply |
