BC370T
Quad Electrical to Optical Transmitter 3G-SDI, HD-SDI, SD-SDI, ASI
Description

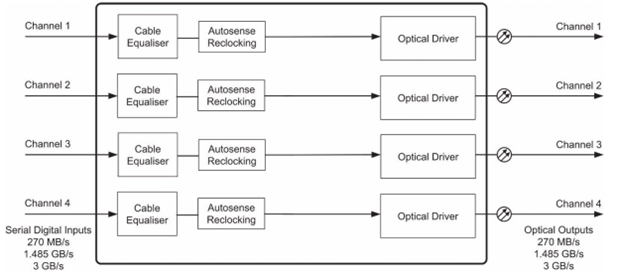

The BC370T is a high-performance transmitter card designed to convert four independent electrical signals, 3G-SDI, HD-SDI, SD-SDI, and ASI, into optical format for fibre optic transmission. Each incoming signal is auto-sensed and equalised before being transmitted over a separate optical fibre, ensuring exceptional signal integrity and jitter-free transport.
When a non-standard SDI signal is detected, each channel automatically switches to a non-reclocking bypass mode, supporting data rates up to 3 Gb/s. The BC370T is available in multimode, singlemode, WDM, and CWDM variants, making it suitable for a wide range of fibre optic applications.
Paired with the BC370R, which performs reverse conversions of optical signals back to electrical format. Together, these units provide a versatile and reliable solution for bi-directional SDI signal transport.
The BC370T occupies a single slot in the BC100/BC100i (3RU) 19″ rack-mounting frame which can hold up to 15 single-slot cards, allowing up to 60 channels of video to be transmitted or received from a single 3RU frame. For smaller deployments, the BC160/BC160i (1RU) 19” frame can six single-slot cards, supporting the transmit/receive up to 24 SDI channels.
Signal and card status monitoring is available through the BM102/BM102i internal webpage or via SNMP for comprehensive network management.
For stand alone applications, the BC370R can be housed in an individual rugged enclosure, such as BC101 (1-slot), BC102 (2-slot) or BC120 (3-slot), offering flexibility and durability for various operational needs.
Specification
| Electrical Input | |
| Standards | SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI |
| Equalisation | Automatic to 100 m @ 3 Gb/s
Automatic to 200 m @ 1.485 Gb/s Automatic to 300 m @270 Mb/s “Pass through mode” without relocking auto enabled if the data rate does not match one of the standard supported SDI |
| Connector | 75 Ohm BNC per IEC 60169-8 Amendment 2 |
| Return Loss | > 15dB @ 1.485 Gb/s |
| Optical Output | |
| Connector | 1 x female LC as standard per channel (Via 2 x SFP Transmitter Modules) |
| Wavelength | 1310 nm, 1550 nm
See Ordering Information |
| Optical Power | -2 dBm @ 1310 nm (Typical)
-2 dBm @ 1510 nm (Typical) 0 dBm @ CWDM (Typical) |
| General Card Specifications | |
| Depth | 60mm |
| Width | 20 mm 4HP |
| Height | 30mm 43RU |
| Weight | 100g |
| Operating Temp | -30 to +70”c |
| Power | 3W |
| Signal Detect | LED on for loss of signal |
| No. of slots | 1 |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC,
EN55022B, EN61000-4-2, EN61000-4-4(level 2), EN61000-4-4FTB, EN61000-4-5 EN61000-4-11 |
| Electrical | Complies with EN61000-6-1
EN61000-6-2, EN61000-6-3, EN61000-6-4 |
| Laser Safety | Dependent on SFP fitted
Complies with Class 1 laser product |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 Years |
