BC460T
Single Channel Electrical to Optical Embedder 3G-SDI, HD-SDI, SD-SDI
Description

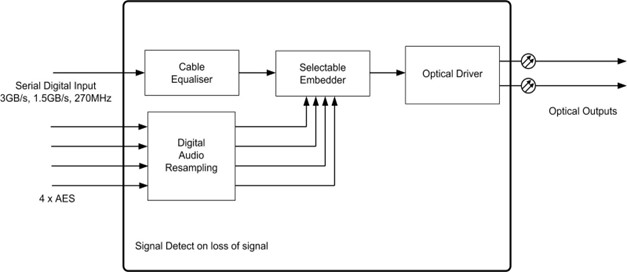

Single Channel Electrical to Optical Embedder 3G-SDI, HD-SDI, SD-SDI The BC460T is a transmitter for the conversion of 3G/HD/SD-SDI into an optical signal with the ability to embed 4 channels of AES/EBU audio. The incoming signal is auto-sensed and then equalised prior to conversion and transmission down a single optical fibre. All Bluebell cards are designed to retain maximum integrity of the signal path offering excellent jitter free optical transport. The BC460T embedder can be used with a BC450R de-embedder allowing AES inputs to feed analogue outputs. The BC460T is available in multimode, singlemode, WDM and CWDM variants to suit any fibre application. The BC460T occupies a single slot in the BC100-3RU 19″ rack-mounting frame which can hold up to 15 single slot cards. Some BC Series processing cards have dual functionality allowing up to 30 channels of video to be transmitted or received from a single 3RU frame. Signal and card monitoring is achieved through SNMP monitoring in the BM101 network card. Alternatively GP-Output alarms can be triggered via the BM100 module. For stand alone applications the BC460T can be housed in an individual rugged enclosure.
Specification
| Electrical Input Video | |
| Standards | SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M |
| Equalisation | Automatic to 100 m @ 3 Gb/s
Automatic to 200 m @ 1.485 Gb/s Automatic to 300 m @ 270 Mb/s |
| Connector | 75 Ohm BNC per IEC 60169-8 Amendment 2 |
| Return Loss | > 15 dB @ 1.485 Gb/s |
| Electrical Input Audio | |
| Connector | 26-way D connector |
| Impedance | 110 Ohm |
| Format | AES 48 kHz AES3-1992 |
| Number | 4 x AES/EBU Digital Audio |
| Optical Output | |
| Connector | 1 x Female LC |
| Wavelength | 850 nm, 1310 nm, 1550 nm, CWDM
See Ordering Information |
| Optical Power | -2 dBm @ 1310 nm(typical)
-2 dBm @ 1510 nm(typical) 0 dBm @ CWD (typical) |
| General Card Specification | |
| Depth | 60 mm |
| Width | 20 mm 4TE |
| Height | 129 mm (3RU) |
| Weight | 100 g |
| Operating Temp | -30 to +70 0C |
| Power | 2.2 W |
| Signal Detect | LED on for signal loss |
| No. of slots | 1 |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC |
| Electrical | Complies with EN 61000 6-1, EN61000-6-2 |
| Laser Safety | Complies with Class 1 laser product 24 CFR 1040.10 & 1040.11 |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 years |
Downloads
Ordering info
| BC460T/M/SFP | Multimode 3G-SDI Optical Transmitter Card with 4 x AES Embedder with LC connector |
| BC460T/S/13/SFP | Singlemode 3G-SDI Optical Transmitter Card with 4 x AES Embedder (1310nm) with LC connector |
| BC460T/S/15/SFP | Singlemode 3G-SDI Optical Transmitter Card with 4 x AES Embedder (1550nm) with LC connector |
| BC460T/S/CWDM/SFP | Singlemode 3G-SDI Optical Transmitter Card with 4 x AES Embedder with LC connector
(Dedicated CWDM Tuned Laser, Wavelength to suit ITU Grid Spacing). See “CWDM Ordering Matrix” for additional information on ordering. |
