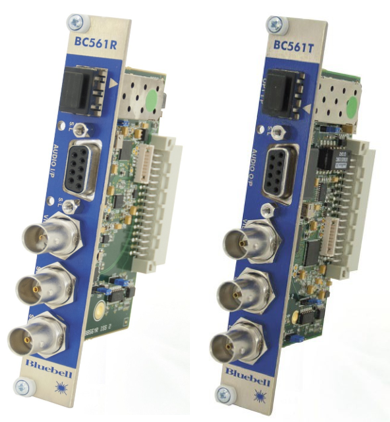

BC561
Electrical <> Optical Transceiver 3G-SDI, Composite, Audio
Description
The BC561 Series provides a compact fibre interface solution for transporting 3G-SDI, HD-SDI, SD-SDI and DVB-ASI signals over fibre optic cable, supporting both transmission and reception within remote camera and broadcast workflows. The BC561T transmitter converts electrical SDI signals to optical, automatically sensing, equalising and reclocking the incoming signal prior to transmission over a single fibre, while the BC561R receiver converts the optical signal back to electrical SDI using a trans-impedance and limiting amplifier followed by output reclocking to maintain signal integrity. A reverse path carried over a second fibre enables transport of two differential analogue audio channels together with a composite/genlock signal, providing cost-effective fibre I/O for compact remote camera systems. Available in multimode, singlemode, WDM and CWDM variants, the BC561 cards occupy a single slot within the BC100 3RU 19″ rack-mount frame, which supports up to 15 single-slot cards, and can alternatively be supplied in rugged standalone enclosures for field deployment. Signal and card monitoring is supported via SNMP using the BM102 network card, ensuring reliable system supervision across installations.
Specification
BC561T:
| Electrical Output (SDI) | |
| Standards | SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI |
| Equalisation | Automatic to 100 m @ 3 Gb/s
Automatic to 200 m @ 1.485 Gb/s Automatic to 300 m @ 270 Mb/s Equaliser and reclocking can be bypassed to support data rates down to 50 Mb/s |
| Connector | 1 x 75 Ohm BNC per IEC 60169-8 Amendment 2 1 x SDI input, 1 x Loop input |
| Return Loss | > 15 dB @ 1.485 Gb/s |
| Format | Reclocked
(with bypass to support data rates down to 50 Mb/s) Please note that the factory default unless specified is for units to be supplied in reclocking mode. Non-reclocking settings are accessed via module pcb. |
| Electrical Output (Video) | |
| Connector | 1 x 75 Ohm BNC |
| Format | Composite Video/Genlock |
| Electrical Output | |
| Connector | 9 Pin D type |
| Format | 2 x differential Analogue Audio |
| Optical Input/Output | |
| Connector | 1 x female LC as standard per channel |
| Wavelength | 1310 nm, 1550 nm,
See Ordering Information |
| Optical Power | -2 dBm @ 1310 nm (typical)
-2 dBm @ 1510 nm (typical) 0 dBm @ CWDM (typical) |
| Connector | 1 x 75 Ohm BNC |
| Format | Composite Video/Genlock |
| Option | By adding the SB561T sub module unidirectional data can also be added to the card functionality. The card is supplied with a different rear panel and becomes a 2 slot device. |
| General Module Specifications | |
| Depth | 86 mm |
| Width | 20 mm 4HP |
| Height | 129 mm 3RU |
| Weight | 100 g |
| Operating Temp | -30 to +70 0C |
| Power | 2.4 W |
| No. of slots | 1 |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC, EN55022B, EN61000-4-2,EN61000-4-4-(Level 2), EN61000-4-2,EN61000-4-4-(Level2), EN61000-4-4FTB, EN61000 4-5, EN61000-4-11 |
| Electrical | Complies with EN61000-6-1, EN61000-6-2, EN61000 6-3, EN61000-6-4 |
| Laser Safety | Dependent on SFP fitted.
Complies with Class 1 laser product |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 Years |
BC561R:
| Electrical Output (SDI) | |
| Standards | SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI |
| Equalisation | Automatic to 100 m @ 3 Gb/s
Automatic to 200 m @ 1.485 Gb/s Automatic to 300 m @ 270 Mb/s Equaliser and reclocking can be bypassed to support data rates down to 50 Mb/s |
| Connector | 1 x 75 Ohm BNC per IEC 60169-8 Amendment 2 per output |
| Return Loss | > 15 dB @ 1.485 Gb/s |
| Format | Reclocked
(with bypass to support data rates down to 50 Mb/s) Please note that the factory default unless specified is for units to be supplied in reclocking mode. Non-reclocking settings are accessed via module pcb |
| Electrical Input (Video) | |
| Connector | 1 x 75 Ohm BNC |
| Format | Composite Video/Genlock |
| Electrical Input | |
| Connector | 9 Pin D type |
| Format | 2 x differential Analogue Audio |
| Optical Input / Output | 1 x Female LC as per standard |
| Wavelength | 1310 nm, 1550 nm (See Ordering Info) |
| Optical Power | -2 dBm @ 1310 nm (typical)
-2 dBm @ 1510 nm (typical) 0 dBm @ CWDM (typical) |
| SB5614 Electrical Input | |
| Connector | 9 Pin D type |
| Type Format | 2 x RS323 / 2 x RS422 / 2 x TTL |
| General Card Specifications | |
| Depth | 86 mm |
| Width | 20 mm 4HP |
| Height | 129 mm 3RU |
| Weight | 100 g |
| Operating Temp | -30 to +70 0C |
| Power | 2.4 W |
| No. of slots | 1 (2 with SB561DR fitted) |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC, EN55022B,
EN61000-4-2, EN61000-4-4-(Level 2), EN61000-4-4FTB, EN61000-4-5, EN61000-4-11 |
| Electrical | Complies with EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
| Laser Safety | Dependent on SFP fitted.
Complies with Class 1 laser product |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 Years |
Downloads
Ordering info
BC561T:
| BC561T/S | Singlemode 3G/SDI, HD/SDI Fibre Optic Transceiver Module, Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI (1310nm). With reverse video/genlock and 2 x differential analogue audio on second fibre.
Fitted with LC connectors as standard |
| SB561 sub module | Sub Module adds additional unidirectional data to BC561 board
NB : BC561 becomes a double slot device when the sub board is fitted |
| SB561DT | Sub module for BC561T unit. When fitted it provides inputs for 2 x RS232 + 2 x RS422 + 2 x TTL |
| For all available enclosures and frames see section “Universal Chassis and Power Supplies”. | |
BC561R:
| BC561R/S | Singlemode 3G/SDI, HD/SDI Fibre Optic Receiver Module, Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI (1310nm). With reverse video/genlock and 2 x differential analogue audio on second fibre.
Fitted with LC connectors as standard |
| SB561 sub module | Sub Module adds additional unidirectional data to BC561 board
NB : BC561 becomes a double slot device when the sub board is fitted |
| SB561DR | Sub module for BC561r unit. When fitted it provides inputs for 2 x RS232 + 2 x RS422 + 2 x TTL |
| For all available enclosures and frames see section “Universal Chassis and Power Supplies”. | |
