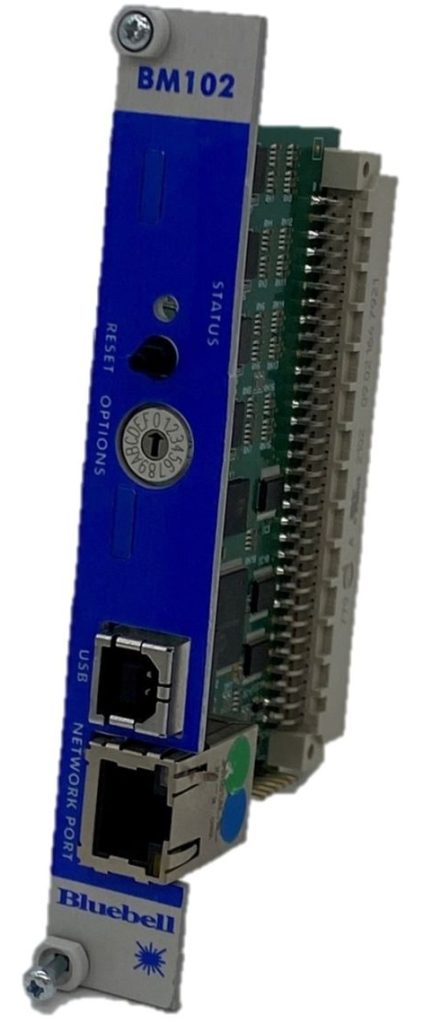

BM102
Network Monitoring Card
Description
The BM102 is an intelligent monitoring plug-in module from Bluebell Opticom, designed to provide real-time status and diagnostics for BC Series cards installed in the BC100 (3RU) and BC160 (1RU) modular frames. The BM102 monitors power supplies, fan status, frame temperature, enhanced diagnostics for all BC cards, including detailed reporting of card model, serial number, firmware/hardware revisions, and SFP status such as optical power, temperature, and voltage, ideal for more advanced monitoring needs..
Via an RJ45 Ethernet port, the module supports SNMP for integration into network management systems, and offer built-in web interfaces for convenient browser-based monitoring.
Whether used in OB trucks, studios, or fixed installations, the BM102 help simplify maintenance and provide peace of mind in critical signal transport environment.

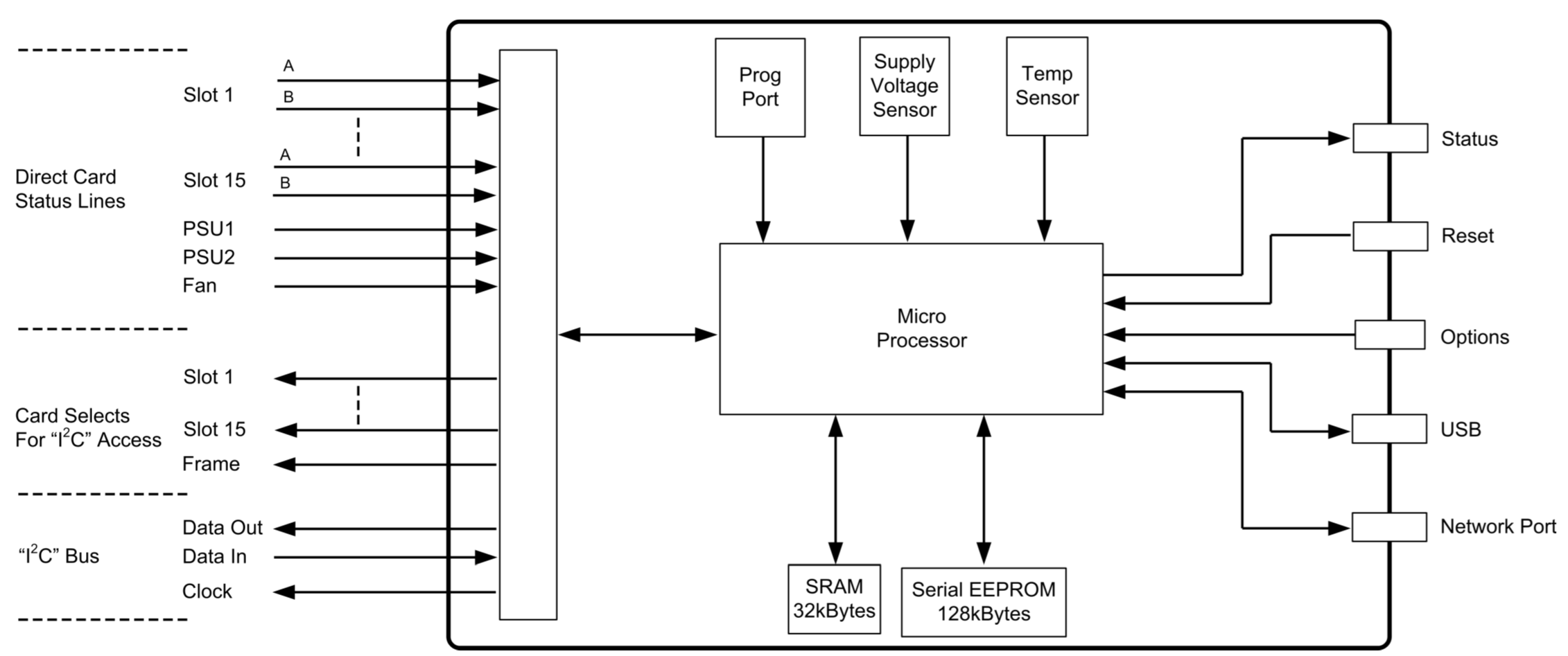

Specification
| Parameters reported by both BM101 and BM102 | |
| From the Frame | PSU1, PSU2 faults
Frame temperature (sensor on the BM101/2) Frame internal voltage |
| From cards in the frame | Signal loss Channel A, B |
| Parameters added on the BM102 | |
| From the Frame | Fan fault |
| From ‘new’ cards in the frame | Card Present
Card Type (part number) Card Serial Number Card Hardware revision Card Firmware revision Card Function (brief summary) Signal loss Channel A, B (see note 3) |
| From ‘new’ cards fitted with an SFP | SFP Manufacturer
SFP Type (part number) SFP Temperature SFP Temperature Warning SFP Supply Voltage SFP Supply Voltage warning SFP Direction (tx/rx) Ch1, 2 SFP Transmit wavelength Ch1, 2 SFP Transmit Bias current Ch1, 2 SFP Transmit Bias current warning Ch1, 2 SFP Power Ch1, 2 SFP Power Warning Ch1, 2 |
| Depth | 75 mm |
| Width | 20mm (4HP) |
| Height | 129mm (3RU) |
| Weight | 170g |
| Power Supply | 4.5 – 6v DC |
| Power Consumption | 1.0W (160mA at +6V DC) |
| Electrical Connections | Ethernet 10Base-T
USB Standard B socket Via the 64-way |
| DIN41612 connector | 30 card status lines
2 power supply fail lines 1 fan fail line 16 slot select lines 3 ‘I2C’ signals |
| Operating Temp | -30°C to +70°C |
Related products
Downloads
Ordering info
| BM102 | Network Monitoring Card with Ethernet connection for use in BC100 and BC160 frames |
