BN366
4 x 3G-SDI de/multiplexor
Description

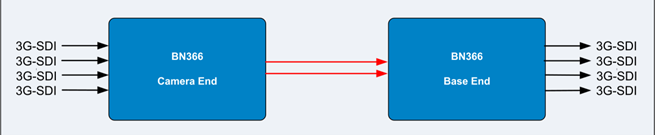

The BN366 is a compact fibre optic solution designed to transport four independent 3G-SDI signals over two fibres, enabling transparent, high-performance 4K signal links. Operating as either a transmitter (BN366T) or receiver (BN366R), the unit multiplexes two separate wavelengths or services onto each fibre, with each wavelength remaining fully independent. In transmission applications, four SDI signals can be carried in a single direction across two fibres, while the corresponding receiver demultiplexes the signals back into individual 3G-SDI outputs, providing reliable and efficient multi-channel video transport over fibre.
Specification
| Electrical Input | |
| Standards | SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI |
| Equalisation | Automatic to 100 m @ 3 Gb/s
Automatic to 200 m @ 1.485 Gb/s Automatic to 300 m @ 270 Mb/s |
| Connector | 1 x 75 Ohm BNC to IEC 60169-8 Amendment 2 per channel |
| Return Loss | > 15 dB @ 1.485 Gb/s Format Reclocked |
| Optical Output | |
| Connector | 2 x female ST as standard per unit |
| Wavelength | 1310 nm, 1550 nm |
| Optical Power | -3 dBm @ 1310 nm (typical) |
| Optical Input | |
| Connector | 2 x female ST as standard per unit
Also available with 1 x Fibre port |
| Wavelength | 1270-1610 nm |
| Sensitivity | > -22 dBm @ 3 Gb/s (typical) |
| Max I/P power | > -1 dBm |
| Electrical Output | |
| Standards | SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI
Automatic rate selection for 3G-SDI, HD-SDI and SD-SDI data rates. |
| Connector | 1 x 75 Ohm BNC to IEC 60169-8 Amendment 2 per channel |
| Return Loss | > 15 dB @ 1.485 Gb/s |
| Signal Level | 800 mV +/- 10% |
| DC Offset | 0 +/- 0.5 V |
| Jitter | <0.15 UI line equalized |
| Format | Reclocked |
| General Card Specifications (Excluding connectors) | |
| Length | 134 mm |
| Width | 109 mm |
| Height | 30 mm |
| Weight | 200 g |
| Operating Temp | -30 to +70 0C |
| Power | 2.5 W |
| Voltage | 4.5 to 17 V dc |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC, EN55022B,
EN61000-4-2, EN61000-4-4-(Level 2), EN61000-4-4FTB, EN61000-4-5, EN61000-4-11 |
| Electrical | Complies with EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
| Laser Safety | Dependent on SFP fitted.
Complies with Class 1 laser product |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 Years |
Ordering info

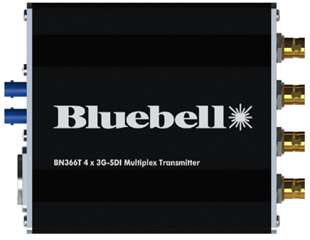

| BN366T/S/4T/ST | Singlemode Quad Channel 3G/SDI, HD/SDI Fibre Optic Transmitter Module, Auto-sensing for SDI, ASI, HD/SDI and 3G/SDI.
Fitted with 2 x ST connectors for dual fibre output (1310 and 1550nm) PS12 Power Supply ordered separately |
| BN366R/S/4R/ST | Singlemode Quad Channel 3G/SDI, HD/SDI Fibre Optic Receiver Module, Auto Sensing for SDI, ASI, HD/SDI, and 3G/SDI
Fitted with 2 x ST connectors for dual fibre input (1310 and 1550nm). PS12 Power supply ordered separately In Aluminium enclosure 134 x 109 x 30mm with internal WDM’s built-in for dual fibre I/O NB: Also available with 1 fibre port. |
