BN380H
4K HDR HDMI to optical converter
Description
Specification
Downloads
Ordering info
Description

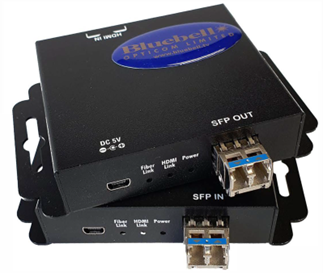

4K HDR HDMI to optical converter The BN380H 4K HDR HDMI extender sends your HDMI signal in Ultra-HD 4K2K@60/50 format over an optical link up to 10km using single mode fiber optic cable. Users can easily extend Ultra-HD signals from a variety of sources to distant display monitors.
Specification
| Technical | BN380H (TX) | BN380H (RX) |
| Role of Usage | Transmitter (TX) | Receiver (RX) |
| HDMI Compliance | HDMI 2.0a | |
| HDCP Compliance | HDCP2.2 | |
| Video Bandwidth | Single-link 600MHz (18Gbps) | |
| Video Support | HDR4K2K@50/60 [4:2:0 10 bits]/ 4K2K@50/60 [4:4:4 8 bits] | |
| HDMI over Fibre | YES | |
| Audio Support | Surround sound [up tp 7.1ch]or stereo audio | |
| Equalisation | Auto | |
| Input TMDS signal | 1.2 Volts [peak to peak] | |
| Input DOC signal | 5 Volts [peak to peak] | |
| ESD protection | [1] Human body model – ±19kV [air-gap discharge]& ±12kV [contact discharge]
[2] Core chipset – ±8kV
|
|
| PCB stack-up | 6-layer board [impedance control – differential 1000; single 500 | |

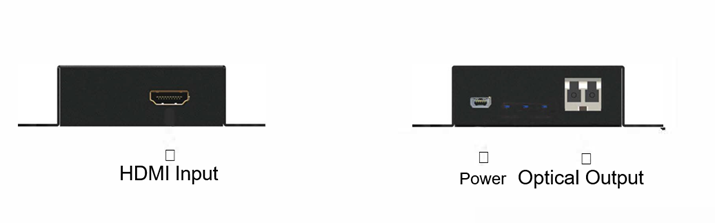

| Input | 1 x HDMI | 1 x Fibre |
| HDMI Connector | Type A [19-pin female] | |
| Mechanical | ||
| Housing | Metal Enclosure | |
| Dimensions (LxWxH) | 79mm x 72mm x 22mm | |
| Weight | 195g | |
| Fixing | Wall-mounting flanged case with screws | |
| Power Supply | 5V2A | Non-inverting |
| Power Consumption | Max 10W | |
| Operating Temp | 0-55°C | |
| Storage Temp | -20~60°C | |
| Relative Humidity | 20~90% RH [no condensation] | |
Ordering info
| BN380H | 4K HDR HDMI to Optical Converter |
