BN384
HDMI 4K60, Audio & Control Transport over Fibre or Ethernet
Description

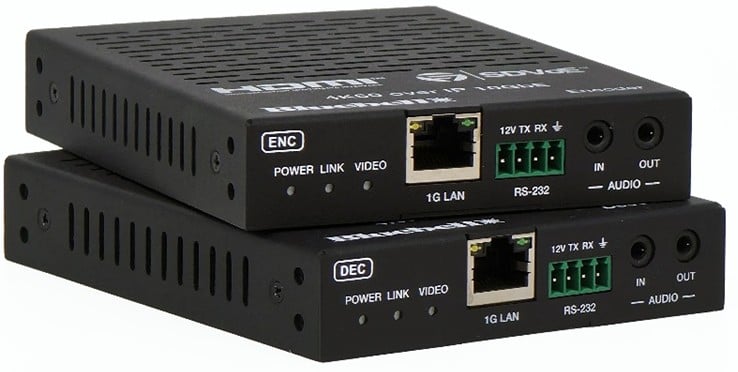

The BN384E and BN384D provide a compact point to point transport solution for HDMI 4K60, audio, Ethernet, and control signals over fibre or Ethernet infrastructure. Designed for professional AV and broadcast environments, the units support uncompressed HDMI 4K60 with zero frame latency, ensuring signal transparency for real time applications.
The system may be deployed using direct fibre links or routed through Ethernet network switches, dependent on whether optical or copper SFP modules are fitted in the units. This allows flexible integration into both dedicated fibre paths and existing network infrastructures.
The BN384E and BN384D provide a flexible and scalable transport solution for HDMI 4K60, audio, and control signals. By supporting both direct fibre connectivity and routed Ethernet operation using standard SFP modules, the units integrate cleanly into a wide range of Bluebell BN and BC based system architectures.
Specification
| Signal Support | |
| HDMI |
|
| Audio |
|
| Data and Control |
|
| Transport Interface |
|
| System Operation | |
| BN384E Transmitter | The BN384E is installed at the source location and accepts HDMI, embedded audio, Ethernet, and RS-232 control. Signals are presented to a 10G SFP transport interface for delivery over a direct link or via an Ethernet switch infrastructure. |
| BN384D Receiver | The BN384D is installed at the destination and converts the transported signals back to HDMI, analogue audio, Ethernet, and control interfaces for connection to displays, projectors, and associated equipment. |
Ordering info
| Ordering Information | |
| BN384E | HDMI 4K60 Transmitter |
| BN384D | HDMI 4K60 Receiver |
Share your requirements and we’ll help specify the right fibre and IP solution.
