BN810
Multi-rate Ethernet to Fibre Converter Module 10/100/1000BaseT
Description

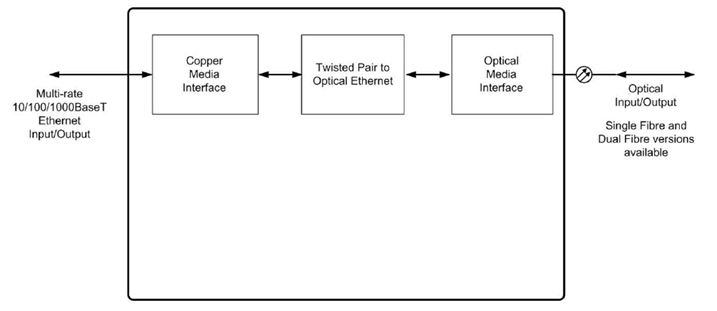

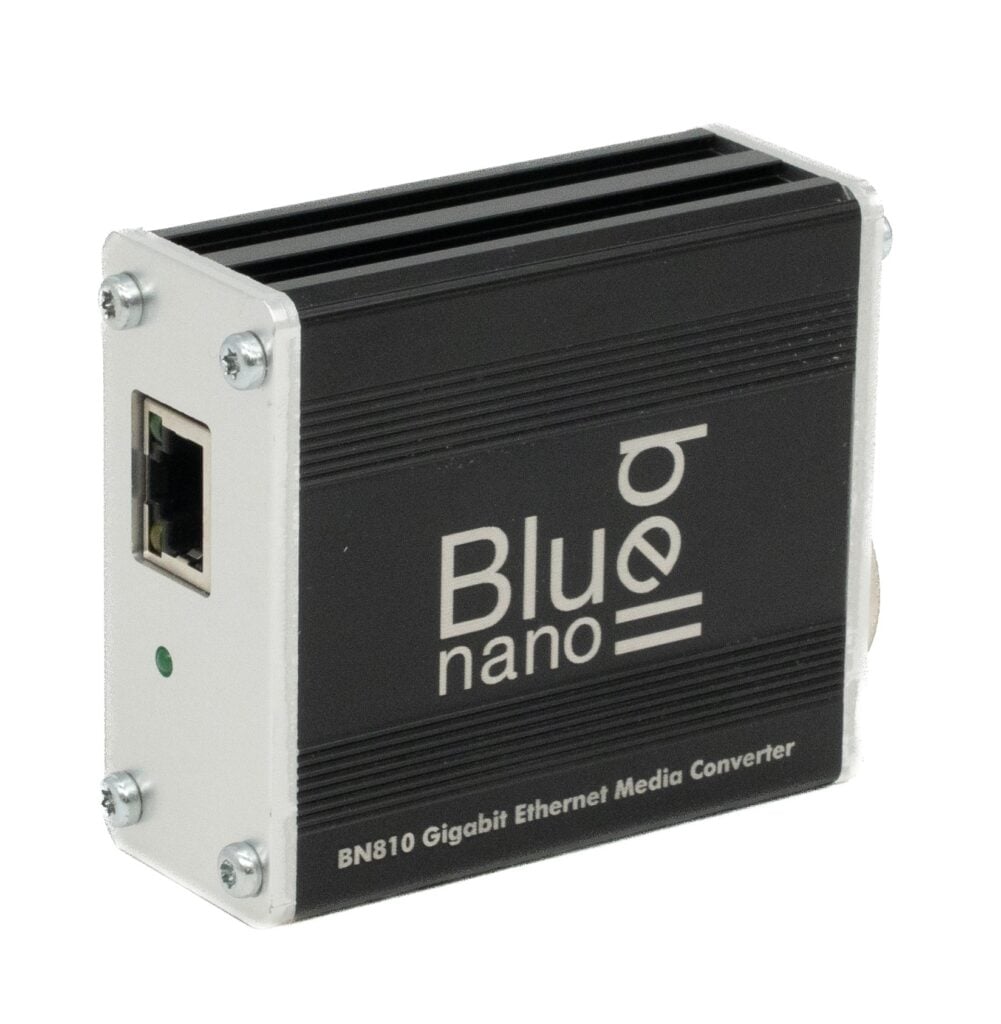

The BN810 is a copper twisted pair to fibre optic media converter for conversion between copper twisted pair 10Base-T, 100Base-T or 1000Base-T data to fibre optic 100Base-FX or 1000Base-X format. Data isolation transformers are provided for the twisted pair input and output. LEDs provide power, network and fibre activity indication.
All Bluebell products are designed to retain maximum integrity of the signal path offering excellent jitter free optical transport.
The BN810 is available in multimode and singlemode variants to suit any fibre application. Versions can be selected which provide full duplex operation over two fibres or a single fibre with distances of 120km achievable with the right SFP. CWDM versions are available to support the ITU G.694.2 grid specifications.
The BN810 can be used as a remote Ethernet conversion device which can be paired with another BN810 or the rack-based BC860 or BC862 Ethernet conversion cards.
Specification
| Electrical Input/Output | |
| Connector | RJ45 |
| Number | 1 |
| Format | Full Duplex 100/1000Base-FX Data Transmission
10/100/1000BaseT half/full duplex auto-negotiation |
| Standard | IEEE 802.3
802.3 10 BaseT 802.3u 100 BaseT 802.3ab 1000 BaseT |
| Optical Input/Output | |
| Connector | 1 female LC/PC Single Fibre Version
2 x female LC/PC Dual Fibre Version |
| Wavelength | See below; dependent upon model type |
| Standard | 100Base-FX and 1000Base-X |
| Optical Power | – 9dBm @ 850 nm
– 15dBm @ 1310 nm multimode – 6dBm @ 1310 nm and 1550 nm singlemode – 6dBm @ CWDM wavelengths |
| Sensitivity | – 3dBm to -28 dBm |
| Max I/P Power | – 1dBm |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC |
| Electrical | Complies with EN 61000-6-1, EN61000-6-2 |
| Laser safety | Complies with Class 1 laser product 24 CFR 1040.10 &1040.11 |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 Years (1 year on SFPs) |
Downloads
Ordering info
| BN810S/2/13/LH | Singlemode Dual Fibre 10/100/1000BaseT Ethernet to 1000Base-EX Fi bre Converter Card (1310nm). 40km Long Haul Transceiver |
| BN810S/2/CWDM/xx/WB | Singlemode Dual Fibre 10/100/1000BaseT Ethernet to 1000Base-EX Fibre Converter Card (CWDM). CWDM 40km Long Haul Transceive |
| BN810S/13/15
|
Singlemode Single Fibre 10/100/1000BaseT Ethernet to 1000Base-LX10 Fibre Converter Cards (1310nm). Used in conjuncti on with BC860/S/15/13 as a matched pair |
| BN810S/15/13
|
Singlemode Single Fibre 10/100/1000BaseT Ethernet to 1000Base-LX10 Fibre Converter Cards (1550nm)
Used in conjunction with BC860/S/13/15 as a matched pair. Fitted with LC connectors as standard |
| BN810 | 10/100/1000BaseT Ethernet to 1000BaseT fibre Converter module – No optics Fitted |
