BN880
High-performance ST2110 IP gateway for multi-channel UHD and HD broadcast workflows.
Description

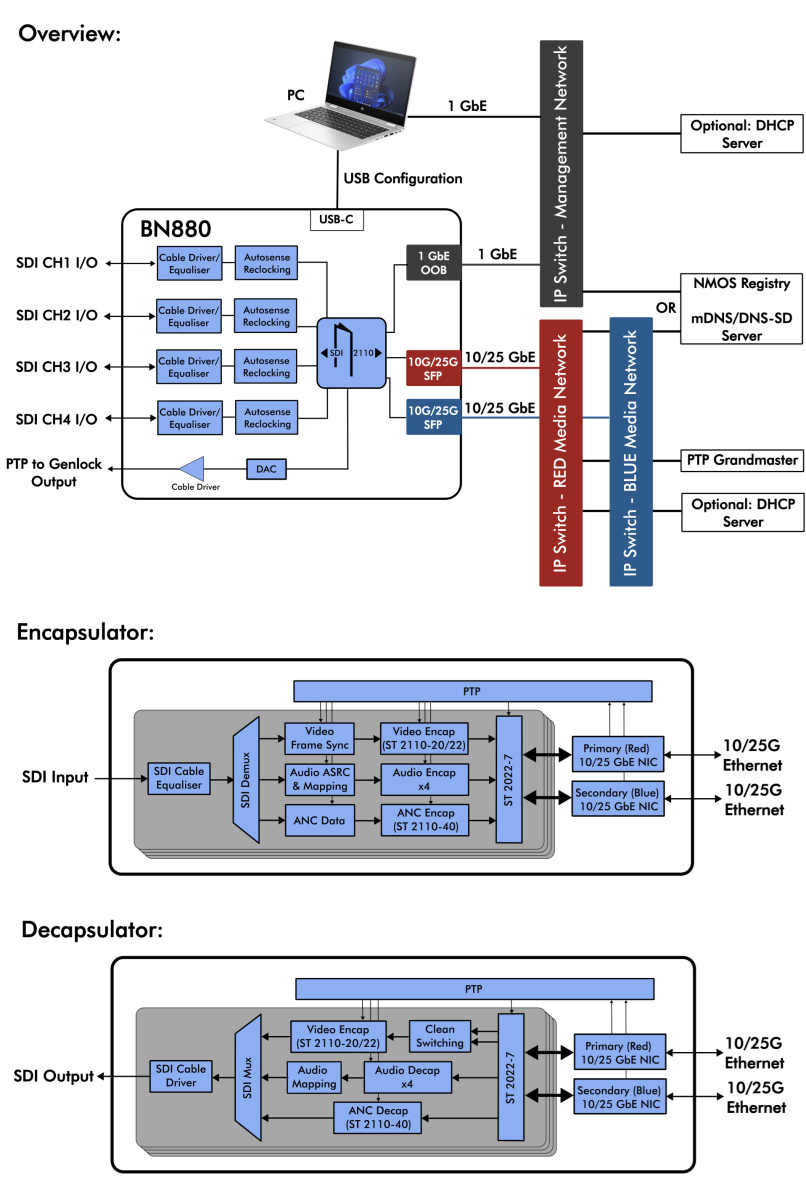

The Bluebell BN880 Series ST 2110 gateways offer advanced multi-channel conversion between SDI and ST2110 IP, catering to modern broadcast workflows with precision and efficiency. Available in two primary variants — 2-channel for 12G-SDI and 4-channel for 3G-SDI — each channel supports one video, four audio, and one ANC data flow. With the capability to handle up to 16 audio channels per flow and flexible audio re-mapping, the BN880 ensures unmatched versatility for complex signal transport requirements.
The BN880 series supports PTP (Precision Time Protocol), which enables accurate timing and synchronisation across devices, crucial for broadcast workflows. Optional PTP-synchronised genlock outputs can further enhance timing precision for video and audio signals, allowing secure and independent setup and management of the system separate from the main data streams.
Designed for high-performance environments, the BN880 features dual 25G (or 10G) Ethernet IP media ports with full support for ST 2022-7 hitless redundancy, ensuring reliable and uninterrupted signal transmission. The device offers flexible control and configuration options via NMOS or Ember+, as well as a published RESTful API for seamless integration into third-party control systems. Users can also utilise MN SET software or the USB-C port with BluebellConnect for quick and easy initial network configuration.
Specification
| Sync | |
| Standards Compliance | HD-SDI:SMPTE ST 292
3G-SDI:SMPTE ST 424 6G-SDI: SMPTE ST 2081 12G-SDI: SMPTE ST 2082 |
| Input Equalisation (Typical) | Automatic to:
HD-SDI: 240m @ 1.485 Gb/s 3G-SDI: 170m @2.97 Gb/s 6G-SDI: 90m @ 5.94 Gb/s 12G-SDI: 70m @ 11.88 Gb/s |
| I/O Return Loss | <15 dB, 5 MHz – 1.485 GHz
<10 dB, 1.485 GHz – 3 GHz <7 dB, 3 GHz – 6 GHz <4 dB, 6 GHz – 12 GHz |
| Connectors | 75-ohm BNC per IEC 60169-8, Amendment 2 |
| IP | |
| IP Media Ports | 2x 25GbE via two SFP28 Transceivers |
| Hitless redundancy support | Full support through dual physical links
ST2022-7 applies to receiver and sender streams Class D and A |
| Encapsulator Input | 1x SDI |
| Encapsulator Output | 1x ST2110-20 (Video)
4x ST2110-30 (Audio) 1x ST2110-40 (ANC) |
| Decapsulator inputs | 1x ST2110-20 (Video)
4x ST2110-30 (Audio) 1x ST2110-40 (ANC) |
| Decapsulator Output | 1 x HD-SDI |
| PTP Support | ST2110-10 (AES-R16-2016) |
| Traffic Shaping | ST2110-21
Senders: Narrow Gapped Receivers: Narrow Gapped, Narrow Linear & Wide |
| Compressed Audio: | ST2110-31 |
| Encapsulation Processing delay | · Video w/o frame-sync = less than 1 line
· Video w/frame-sync = max. 1 frame · Audio = depends on the configured packet time · Ancillary = depends on the sender profile |
| Decapsulation Processing delay | · Video in minimum-delay mode = min. 2 lines, max. almost 1 frame of delay (depends on the output offset configuration)
· Video in normal mode (frame buffer active) = 1 frame of delay, up to almost 2 frames of delay (depends on the output offset configuration) · Audio/ancillary = aligned to video offset · Clean Switch = max 2 frames of delay for the make-before-break mechanism to finish |
| Clean and Quiet Switching | OPTION, Make-before-break |
| Audio Packet time: | A/B/C all packet times, with up to 16 channels per flow |
| Audio PCM sample rate(s): | 48KHz |
| HDR metadata: | Passthrough |
| Management: | IPv4, In-band via Ethernet ports |
| DHCP support: | RFC-2131 specification |
| LLDP: | IEEE- 802.1AB |
| IGMP: | V2 and V3 (RFC-2236 and RFC-3376) |
| Multicast streams | RTP – RFC 5771 |
| Unicast streams | N/A |
| NMOS Support | IS-04 (Discovery) v1.2
IS-05 (Routing) v1.0 IS-08 (Audio Mapping) v1.0 IS-09 (System)-Client Only BCP-002-01 (Essence Grouping) TR-1001 Recommendation: System environment and Device behaviours |
| Ember+ | Bess Protocol support (OPTION) |
| Packet Jitter tolerance | Class A (10ms) – 7 gap between both signal + jitter on signal maximum of 10ms |
| Sync | |
| Genlock Output | OPTION 1x PTP-Synchronisation black and burst output |
| General | |
| Input Voltage | 8-17V |
| Power Consumption | 12W Typical )Depends on SFPs used) |
| Boot up time: | 40 seconds |
| Operating temp | 0-70C |
| Dimensions | 112 x 46 x 165mm excluding connectors
112 x 46 x 178mm including connectors |
Ordering info
| P/N | Description |
| BN880/2T | Dual 12G-SDI Encapsulator |
| BN880/2R | Dual 12G-SDI Decapsulator |

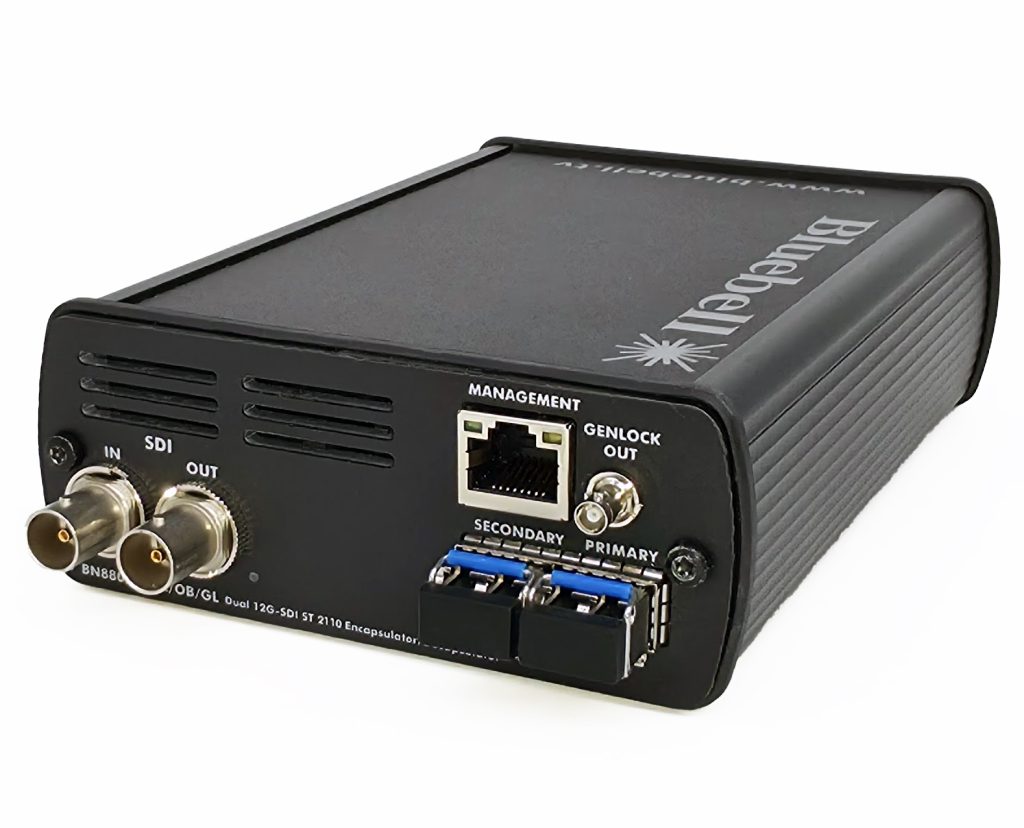

| BN880/1T/1R | 1x 12G-SDI Encapsulator + 1x 12G-SDI Decapsulator |
| BN880/4T | Quad 3G-SDI Encapsulator |
| BN880/4R | Quad 3G-SDI Decapsulator |
| BN880/2T/2R | 2x 3G-SDI Encapsulator + 2x 3G-SDI Decapsulator (25 GbE Media Ports) |
| BN880/2T/2R/10G | 2x 3G-SDI Encapsulator + 2x 3G-SDI Decapsulator (10 GbE Media Ports) |
| BN880/2T/JPEGXS | JPEG-XS Compression Encapsulator for two 12G-SDI to 10GbE networks. |
| BN880/2R/JPEGXS | JPEG-XS Compression Decapsulator for two 12G-SDI to 10GbE networks. |
| /GL | OPTION – PTP Synchronised Genlock output |
| /CS | OPTION – Clean & Quiet Switching* (bandwidth limitations apply) |
| /EP | OPTION – Ember+ instead of NMOS |
| /OB | OPTION – 1GbE out of band configuration |
