Chronos

The Chronos Series is an advanced remote connection system designed to transport 12G-SDI, genlock, and multi-rate Ethernet signals over a single fibre link. This versatile transmitter and receiver pair is specifically tailored to meet the needs of modern broadcasting, providing seamless connections between remote 4K cameras, control signals, and synchronisation signals at base stations.

In addition to supporting SDI, Genlock Sync and Ethernet signals, Chronos features an LC fibre optical input, allowing an additional singlemode optical signal to be transmitted over the same fibre. This capability enhances flexibility, making Chronos an ideal solution for complex setups, particularly in demanding Outside Broadcast (OB) environments due to its compact and weatherproof housing.

Connectivity is streamlined with four BNC connectors for 2x SDI video, 2x genlock in/out and one or two RJ45 Ethernet ports, alongside a dual LC optical port for fibre communication. The optical expansion port allows cascading with additional Chronos units or other optical sources operating on different wavelengths. High Band units, operating in the 1470–1610 nm range, can interconnect with Low Band units in the 1270–1410 nm range, doubling the signal capacity on a single fibre link.

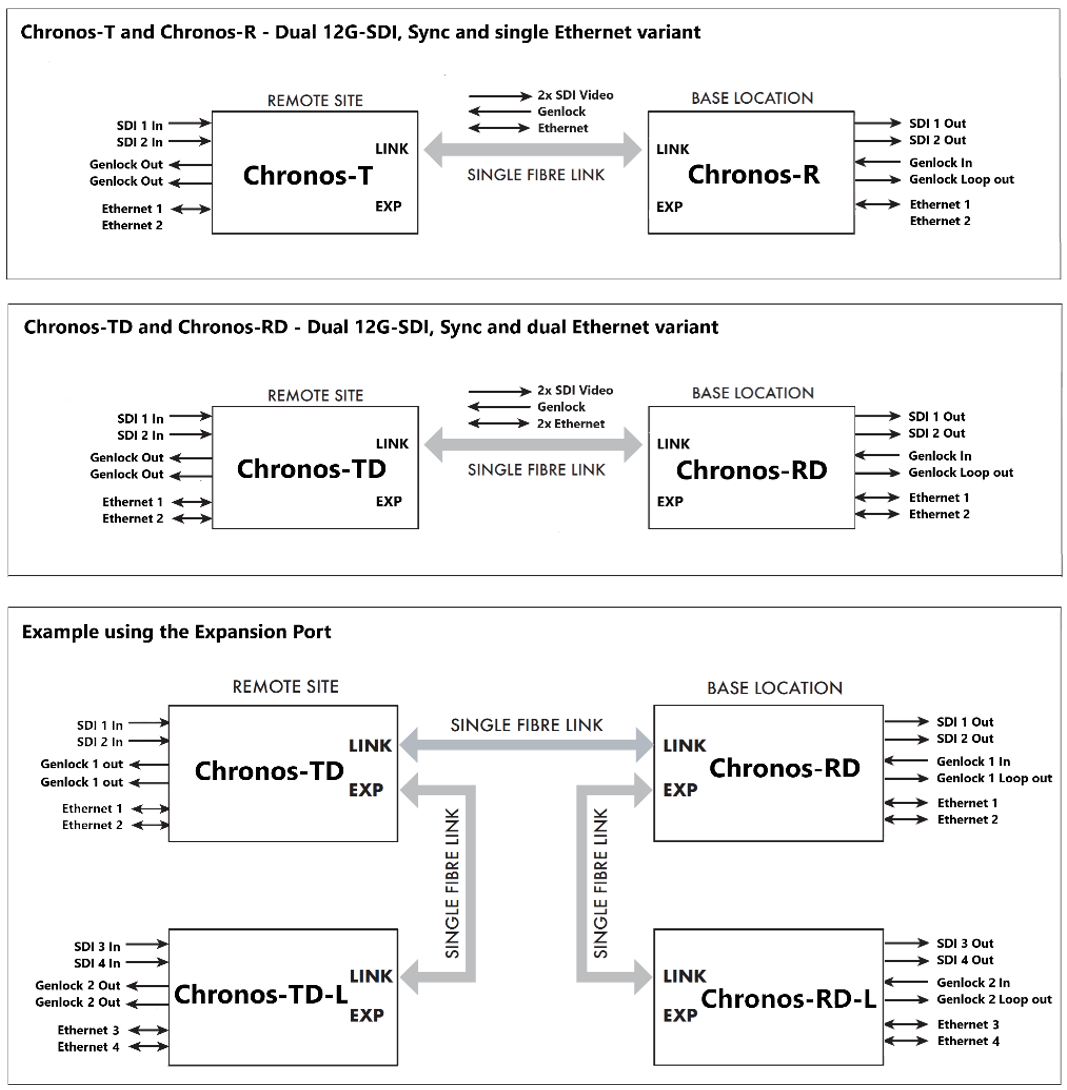

The Chronos Series consists of four models, each which exists in two variants. These are:

Optical Expansion and Scalability:

An LC “EXP” port enables the Chronos to operate as a scalable solution. High Band units can interconnect with Low Band units via their optical expansion ports, effectively doubling the transport capacity. This configuration allows up to four 12G-SDI video, four sync outs and and four Gigabit Ethernet streams to pass over a single fibre link – allowing control of four cameras. Additional optical signals can be accommodated as long as they operate on unused wavelengths.

Connectivity and Design:

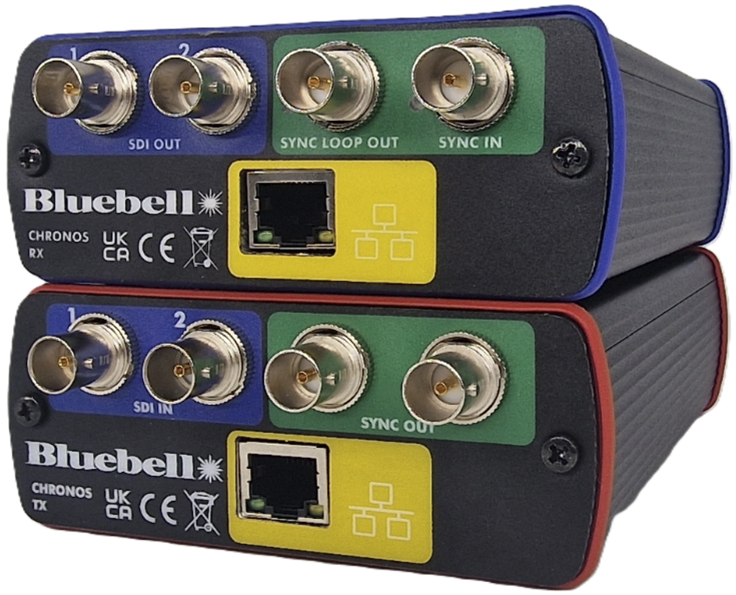

Each Chronos unit features four BNC connectors for 2x SDI video, genlock and one or two RJ45 Ethernet ports. The standard optical port is a dual LC connector, ensuring compatibility with industry-standard fibre systems. Compact and robust, the Chronos is engineered for reliable performance in demanding environments.

Chronos is the ultimate solution for high-capacity, long-distance signal transport in modern broadcast and live production setups.
