Flightcase
Mobile Fibre Optic System - Optical 2U Flightcase
Description

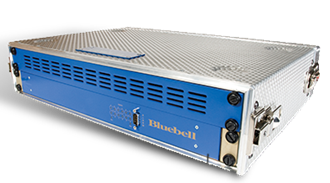

The Bluebell 2U Flightcase is a rugged portable fibre optic system specifically designed for OB, ENG and SNG applications. A standard BC160 frame is fitted to which a range of modular cards are fitted to achieve the signal flow required. A passive BC160P frame can also be added to provide cost effective and compact optical multiplexing. It has been designed to be used as a “throw-down” box and act as a fibre hub when connected to a truck via a Military Tactical Fibre Optic Cable. Suitable for use in news, sport and concerts in any outside broadcast environment. The unit can be configured for almost any combination of Video, Audio and Data cards. The top slot is fitted with a vented panel. A BC160P can also be fitted to provide additional optical multiplexing. The unit can be supplied with any type of fibre optic connector to suit the application including SMPTE 311 Hybrid Cables, Neutrik OpticalCON, Hermaphroditic or standard SC, FC connectors. Applications have been found with many Outside Broadcast vehicles, special event companies and in pre-fibred venues. Bluebell offers a flexible fibre optic transport solution for field operation.
Specification
| General Specifications | |
| Dimensions | 2U high, 300mm deep, excluding end covers |
| Weight | 10 kg approx. when fully loaded |
| Input Voltage | IEC mains 110/240 V |
| Conformities | |
| EMI/RFI | 89/336/EEC |
| Electrical | EN61000-6-1, EN61000-6-2 Complies with Class 1 laser product |
| RoHS | Directive 2002/95/EC |
| Laser Safety | 24 CFR 1040.10 & 1040.11 |
| Warranty | 5 years |
Downloads
Ordering info
| Optical 2U | Rugged aluminium flight case which houses a BC160 frame. Any combination of cards, including WDM and CWDM can be fitted to give complete flexibility in the field. Dual mains inputs and a rugged rear panel is fitted with BNC, XLR and optical connectors as neccessary |
| For a full quote and to discuss the full range of connectors and options please contact the Sales Office with your requirements. | |
