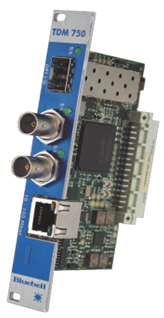

TDM750
Camera Link Fiber Optic
Description
The unit provides cost-effective fibre connectivity for the growing range of compact and remote HD pan/tilt cameras used in concert halls and government chambers, making it possible to forego copper cabling and increase the distance between the cameras and the control room. The link provides an HD/SD-SDI feed from the camera and a bidirectional 10/100 BaseT Ethernet data link for full control of the POV. All signals are multiplexed and transported over two fibres for easy installation or field deployment. The TDM-750 remote camera end can be supplied in a compact BC101 aluminium enclosure for easy mounting in-situ. The TDM-750 base unit fits in a single slot of the standard Bluebell 19” rack frame allowing multiple cameras to feed into a central control room or truck. Alternatively, both ends can be supplied in the standard BC Series card format for cost effective transport of HD and data whether in a studio or flyaway. TDM-750 links are available in multimode, singlemode, single fibre, WDM and CWDM to suit any application.
Specification
| Electrical HD/SD Input | |
| Connector | 75 Ohm BNC per IEC 60169-8 Amendment 2 |
| Standards | SMPTE 292M, SMPTE 259M, SMPTE 297M |
| Equalisation | Automatic to 200 m @ 1.485 Gb/s
Automatic to 300 m @ 270 Mb/s |
| Return Loss | > 15 dB @ 1.485 Gb/s |
| Electrical HD/SD Output | |
| Connector | 75 Ohm BNC per IEC 60169-8 Amendment 2 |
| Return Loss | > 15 dB @ 1.485 Gb/s |
| Polarity | Non Inverting |
| Signal Level | 800 mV +/- 10% |
| DC Offset | 0 +/- 0.5 V |
| Jitter | <0.15 UI line equalised |
| Ethernet Input/Output | |
| Connector | RJ45 |
| Format | Full duplex 100Base-FX Data Transmission with 1-/100 MB/s half/full duplex auto-negotiation |
| Optical Input/output | |
| Wavelength | 1310 nm, 1550 nm, CWDM |
| Optical Power | -2 dBm @ 1310 nm (typical)
-2 dBm @ 1510 nm (typical) 0 dBm @ CWDM (typical) |
| Sensitivity | > -25.5 dBm @ 1.485 Mb/s
> -26.0 dBm @ 270 Mb/s |
| General Specifications | ||
| Depth | 60 mm | |
| Width | 20 mm 4HP | |
| Height | 129 mm 3RU | |
| Weight | 100 g | |
| Operating Temp | -30 to +70 0C | |
| Power | 6 W | |
| No. of slots | 1 | |
| Conformance | ||
| EMI/RFI | Complies with 89/336/EEC, EN55022B, EN61000 4-2, EN61000-4-4(level 2), EN61000-4-4FTB, EN61000 4-5, EN61000-4-11 | |
| Electrical | Complies with EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 | |
| Laser Safety | Dependent on SFP fitted
Complies with Class 1 laser product |
|
| RoHS | Complies with Directive 2002/95/EC | |
| Warranty | 5 years | |
Related products
Downloads
Ordering info
| TDM-750C/LC | Remote end singlemode HD-SDI transmitter card plus 10/100 BaseT on 2 fibres. |
| TDM-750C/CWDM/LC | Remote end singlemode HD-SDI transmitter card plus 10/100 BaseT on 2 fibres. |
| TDM-750B/LC | Base end singlemode HD-SDI receiver card plus 10/100 BaseT on 2 fibres. |
| TDM-750B/CWDM/LC | Base end singlemode HD-SDI receiver card plus 10/100 BaseT on 2 fibres. |
| Single fibre versions available. Contact the Sales Office for information.
For Dedicated CWDM Tuned Laser Wavelengths to suit ITU Grid Spacing available – see CWDM Ordering Matrix
For all available enclosures and frames see section “Universal Chassis and Power Supplies”. |
|
