Video Converters · BC Series

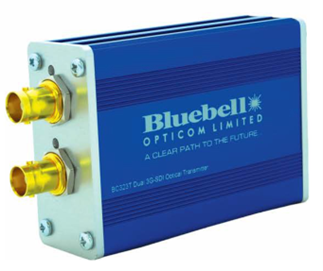

BC323

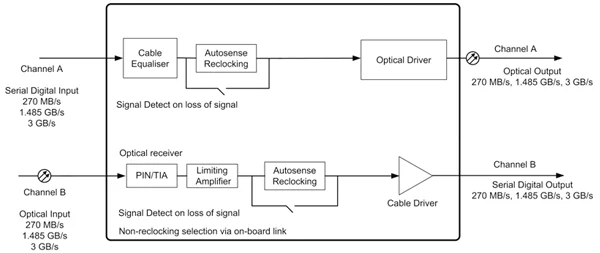

BlueNano Dual Electrical-to-Optical and Optical-to-Electrical Transceiver Module 3G-SDI, HD-SDI, SD-SDI, ASI
Description
Specification
Related products
Downloads
Ordering info
Description
Specification
BC323T:
| Electrical Input | |
| Standards | SMPTE 424M , SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI |
| Equalisation | Automatic to 100 m @3 Gb/s
Automatic to 200 m @ 1.485 Gb/s Automatic to 300 m @ 270 Mb/s Equaliser and reclocking can be bypassed to support data rates down to 50 Mb/s |
| Connector | 1 x 75 Ohm BNC per IEC 60169-8 Amendment 2 per channel |
| Return loss | > 15 dB@ 1.485 Gb/s |
| Format | Reclocked (with bypass to support data rates down to 50 Mb/s) Please note that the factory default unless specified is for units to be supplied in reclocking mode. Non-reclocking settings are accessed via module pcb |
| Optical Output | |
| Connector | 1 x female LC as standard per channel |
| Wavelength | 1310-1550 nm (See Ordering Info) |
| Optical power | -2 dBm@ 1310 nm (typical)
-2 dBm @ 1510 nm (typical) 0 dBm @ CWDM (typical) |
| General module specifications | |
| Length | 92 mm 142 mm Extended enclosure |
| Width | 64 mm |
| Height | 30 mm Excluding connectors |
| Weight | 100 g |
| Operating Temp | -30 to +70 °C |
| Power | 2W |
| Voltage | 4.5 to 17 V de |
| Signal Detect | LED on for signal loss |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC |
| Electrical | Complies with EN 61000-6-1, EN61000-6-2 |
| Laser Safety | Complies with Class 1 laser product 24 CFR 1040.10 & 1040.11 |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 years |
BC323R:
| Electrical Output | |
| Standards | SMPTE 424M, SMPTE 292M, SMPTE 259M,
SMPTE 297M, DVB-ASI |
| Connector | 1 x 75 Ohm BNC per IEC 60169-8 Amendment 2 per channel |
| Return Loss | > 15 dB @ 1.485 Gb/ |
| Format | Reclocked (with bypass to support data rates down to 50 Mb/s)
|
| Signal level | 800 mV +/- 10% |
| DC Offset | 0 +/- 0.5 V |
| Jitter | <0.15 UI line equalised |
| Optical Input | |
| Connector | 1 x female LC as standard per channel
See Ordering Information |
| Wavelength | 1270 – 1610 nm
See Ordering Information for multimode and singlemode variants |
| Optical Power | > -25.0 dBm @ 3 Gb/s
> -25.5 dBm @ 1.485 Mb/s > -26.0 dBm @ 270 Mb/s |
| Max I/P Power | >-1dBm |
| Data rate | 50 Mb/s to 3 Gb/s |
| General Module Specifications | |
| Length | 92mm 142mm Extended enclosure |
| Width | 64mm |
| Height | 30mm Excluding connectors |
| Weight | 100g |
| Operating Temp | -30 to +70 °C |
| Power | 2 W |
| Voltage | 4.5 to 17 V de |
| Signal detect | LED on for loss of signal |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC |
| Electrical | Complies with EN 61000-6-1, EN61000-6-2 |
| Laser Safety | Complies with Class 1 laser product
24 CFR 1040.10 & 1040.11 |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 Years |
Related products
Downloads
Ordering info
BC323T:
| BC323T/M | Multimode Dual Channel 3G/SDI, HD/SDI Fibre Optic Transmitter Module, Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI (850nm). Fitted with LC connectors. PS12 power supply ordered separately. |
| BC323T/S/13/13 | Singlemode Dual Channel 3G/SDI, HD/SDI Fibre Optic Transmitter Module, Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI (1310nm). Fitted with LC connectors. PS12 power supply ordered separately. |
| BC323T/S/13/15 | Singlemode Dual Channel 3G/SDI, HD/SDI Fibre Optic Transmitter Module, Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI (1310nm and 1550nm). Fitted with LC connectors. PS12 power supply ordered separately |
| BC323T/S/CWDM | Singlemode Dual Channel 3G/SDI, HD/SDI Fibre Optic Transmitter Module, Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI. (Dedicated CWDM Tuned Laser, Wavelength to suit ITU Grid Spacing – see CWDM Ordering Matrix). LC connectors as standard. PS12 power supply ordered separately. |
| PS12 | 10 watt Plugtop PSU for the BC313/323/550 Product Range. Fitted with 4 pin XLR.
Voltage range 100-240 V ac 50/60 Hz |
BC323R:
| BC323R/M | Multimode Dual Channel 3G/SDI, HD/SDI Fibre Optic Receiver Module, Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI. Fitted with LC connectors. PS12 power supply ordered separately. |
| BC323R/S | Singlemode Dual Channel 3G/SDI, HD/SDI Fibre Optic Receiver Module, Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI. Fitted with LC connectors. PS12 power supply ordered separately. |
| PS12 | 10 watt Plugtop PSU for the BC313/323/550 Product Range. Fitted with 4 pin XLR. Voltage range 100-240 V ac 50/60 Hz |
| The BC323 can also be supplied in an “extended” enclosure with ST connectors — add /ST to the
end of the part numbers above. |
|
