BN623

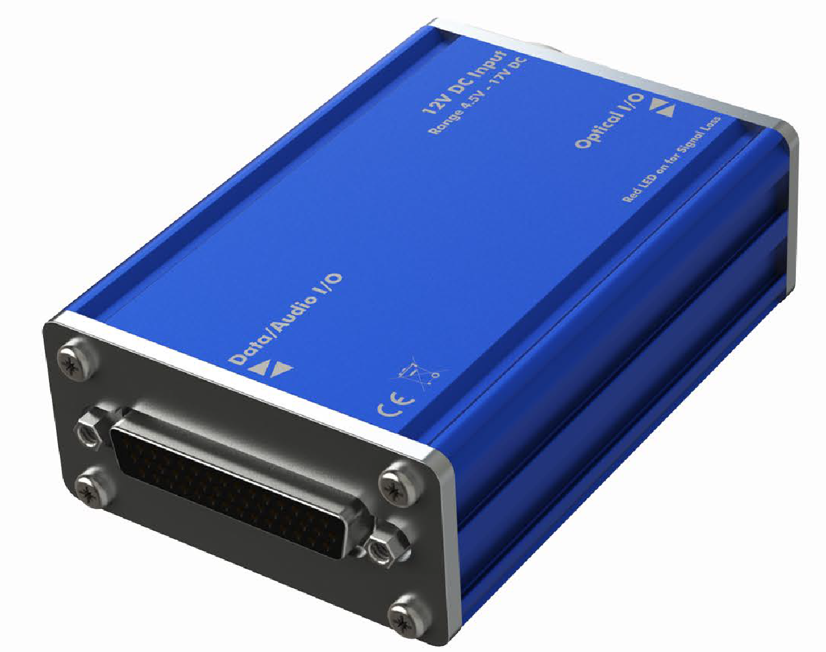

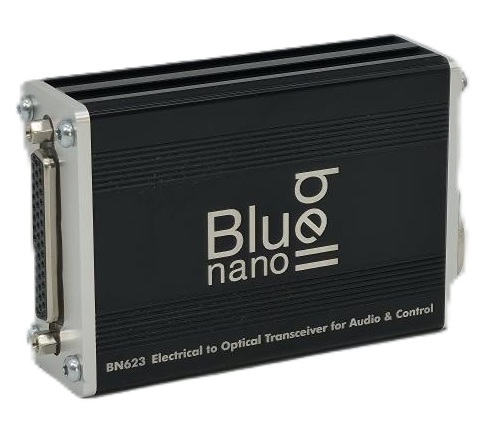

Electrical to Optical Transceiver for Audio & Control
Description

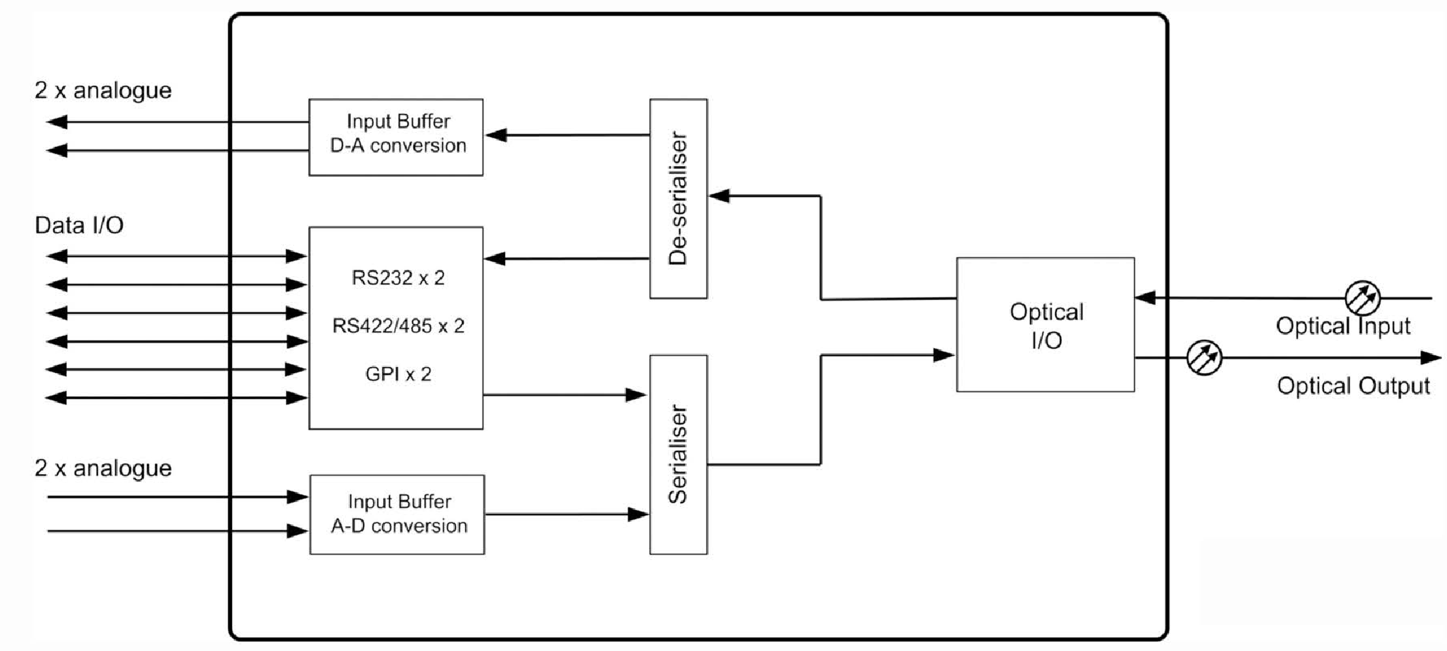

The BN623 is a compact stand-alone multi-format converter for use with broadcast analogue audio and control signals. Two bi-directional analogue audio signals are provided over 2 fibres. Additional control data and GPI signals are also transmitted over the same pair of fibres. The BN623 is ideally suited to linking audio intercom panels remotely over fibre. The BN623 can be supplied in multimode, singlemode and CWDM variations to suit all applications and is a perfect complement to the BC323, BC550 and BC323-63 modules. Power is provided by a DC source of 4.5 to 17V via a 4 pin XLR or the Bluebell PS12 in-line power adapter.
For versions that fit into the BC Series 19” rack frames please contact the Sales Office.
Specification
| Electrical Input/Audio | |
| Connector | 44 pin D connector |
| Format | 2 x analogue audio1, 20 Hz– 20 kHz ± 0.3 dB
2 x RS232 Bi-directional 2 x RS422/485 Bi-directional 2 x GPI Bi-directional |
| Optical Output | |
| Connector | 1 x female FC/PC, ST or SC
See Ordering Information |
| TX wavelength and power plus receive sensitivity are defined by the SFP fitted. Typical values are outlined below | TX Power
-2 dBm @ 1310 nm (typical) -2 dBm @ 1510 nm (typical) 0 dBm @ CWDM (typical |
| RX Wavelength | 1200-1610 nm |
| RX Sensitivity | > -24 dBm @ 1.25 Gb/ |
| Max I/P power | > -1 dBm |
| Note | Audio is designed for talkback system with amplitude restricted to +6 dBu See Ordering Information for the different multimode and singlemode variant |
| General Card Specification | |
| Depth | 92mm |
| Width | 64mm |
| Height | 30mm (Excluding Connectors) |
| Weight | 100g |
| Operating Temp | -30 to+70°C |
| Power | 2.5 W |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC, EN55022B, EN61000-4-2, EN61000-4-4-(Level 2), EN61000-4-4FTB, EN61000-4-5, EN61000-4-11 |
| Electrical | Complies with EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
| Laser Safety | Dependent on SFP fitted. Complies with Class 1 laser product |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 Years |
Related products
Ordering info
| BC623/M | Multimode Dual Fibre Audio and Data Fibre Optic Transceiver Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. Fitted with LC connectors. Includes PS12 power suppl |
| BC623/S/13/WB | Singlemode Dual Fibre Audio and Data Fibre Optic Transceiver Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. (1310 nm TX and Wideband receiver). Fitted with LC connectors. Includes PS12 power supply. |
| BN623/S/13/15 | Singlemode Single Fibre Audio and Data Fibre Optic Transceiver Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over 1 fibre. (1310 nm TX). Used in conjunction with BN623/S/15/13 as a matched pair. Fitted with LC connectors. Includes PS12 power supply. |
| BN623/S/15/13 | Singlemode Single Fibre Audio and Data Fibre Optic Transceiver Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over 1 fibres. (1550 nm TX). Used in conjunction with BN623/S/13/15 as a matched pair. Fitted with LC connectors. Includes PS12 power supply. |
| BN623/S/CWDM/xx/WB | Singlemode Dual Fibre Audio and Data Fibre Optic Transceiver Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. (CWDM TX and Wideband receiver). Fitted with LC connectors. Includes PS12 power supply. |
| BN623 | Audio and Data Fibre Optic Transceiver Base Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over fibre. No Optics Fitted. Includes PS12 power supply. |
