BN723
Electrical to Optical Transceiver for Serial Data Control
Description

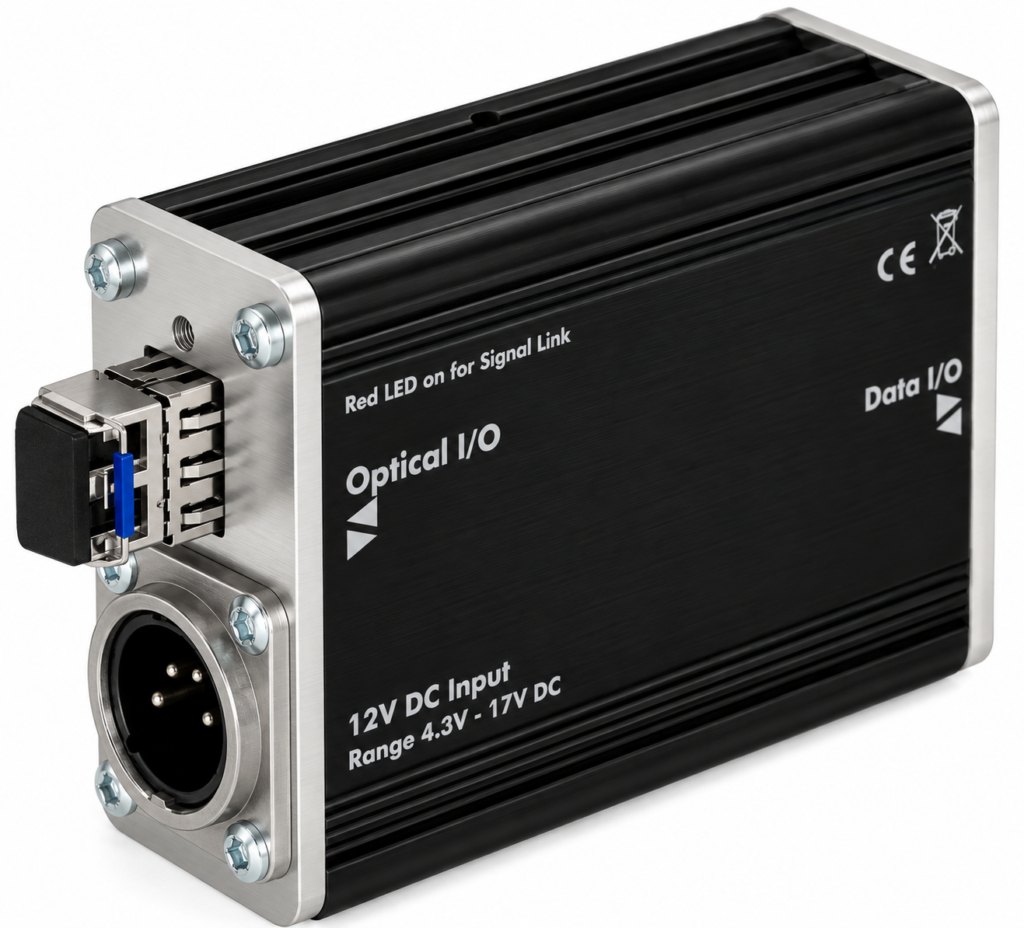

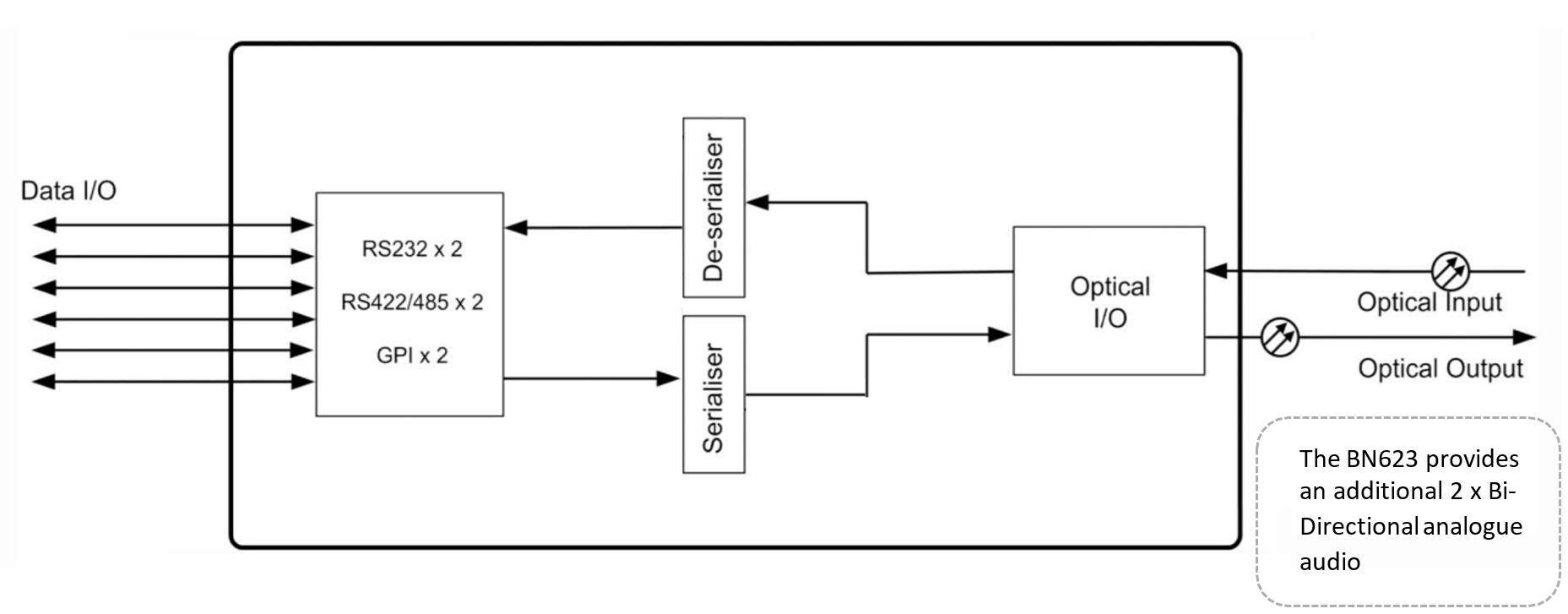

The BN723 is a compact stand-alone multi-format converter for control signals. Control data and GPI signals are transmitted over a pair of fibres.The BN723 can be supplied in multimode, singlemode and CWDM variations to suit all applications and is a perfect complement to video converter modules. Power is provided by a DC source of 4.5 to 17V via a 4 pin XLR or the Bluebell PS12 in-line power adapter.
The BC723 version fits in Bluebell 19” rack frames. Please contact the Sales Office for more information.
Specification
| Electrical Input | |
| Connector | 44 Pin D connector |
| Format | 20 Hz-20 kHz± 0.3 dB
2 x RS232 Bi-Directional 2 x RS422/485 Bi-Directional 2 x GPI Bi-Directional |
| Optical Output | |
| Connector | 1x female LC as standard per channel |
| Tx wavelength and power plus receive sensitivity are defined by the SFP fitted
Typical values are outlined below |
TX Power
-2dBm@1310nm (typical) -2dBm@1510nm (typical) 0 dBm@CWDM (typical) |
| RX Wavelength | 1200-1619 nm |
| RX Sensitivity | > [email protected] Gb/s |
| Max I/P Power | > -1 dBm |
| General Card Specification | |
| Depth | 92mm |
| Width | 64mm |
| Height | 30mm (Excluding Connectors) |
| Weight | 100g |
| Operating Temp | -30 to 70”c |
| Power | 2.5 W |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC, EN55022B, EN61000-4-2, EN61000-4-4(level 2), EN61000-4-4FTB, EN61000-4-5 EN61000-4-11 |
| Electrical | Complies with EN61000-6-1
EN61000-6-2, EN61000-6-3, EN61000-6-4 |
| Laser Safety | Dependent on SFP fitted
Complies with Class 1 laser product |
| RoHS | Complies with Directive 2002/95/ec |
| Warranty | 5 Years |
Related products
Ordering info
| BN723/M | Multimode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 2
fibres. Fitted with LC connectors. Includes PS12 power supply |
| BN723/S/13/WB | Singlemode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. (1310 nm TX and Wideband receiver). Fitted with LC connectors. Includes PS12 power supply. |
| BN723/S/13/15 | Singlemode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 1 fibre. (1310 nm TX). Used in conjunction with BN723/2/15/13 as a matched pair. Fitted with LC connectors. Includes PS12 power supply. |
| BN723/S/15/13 | Singlemode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. (1550 nm TX). Used in conjunction with BN723/S/13/15 as a matched pair. Fitted with LC connectors. Includes PS12 power Supply. |
| BN723 | Data Fibre Optic Transceiver Base Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over fibre. No Optics Fitted. Includes PS12 Power Supply. |
| BN723/S/CWDM/xx/WB | Singlemode and Data Fibre Optic Transceiver Module. 2 x Rs232, 2 x RS422/485 and 2 x GPI over 2 fibres. (CWDM TX and Wideband receiver). Fitted with LC connectors. Includes PS12
power supply. |
