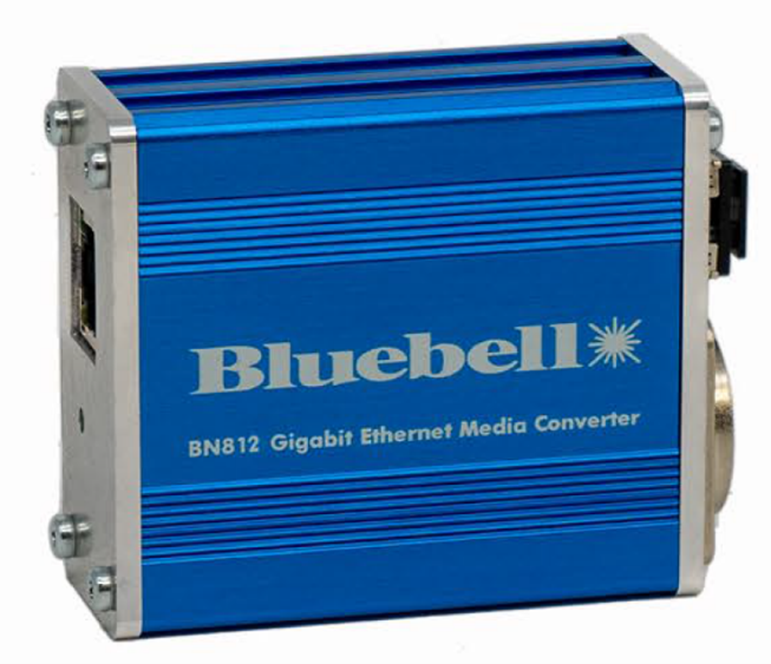

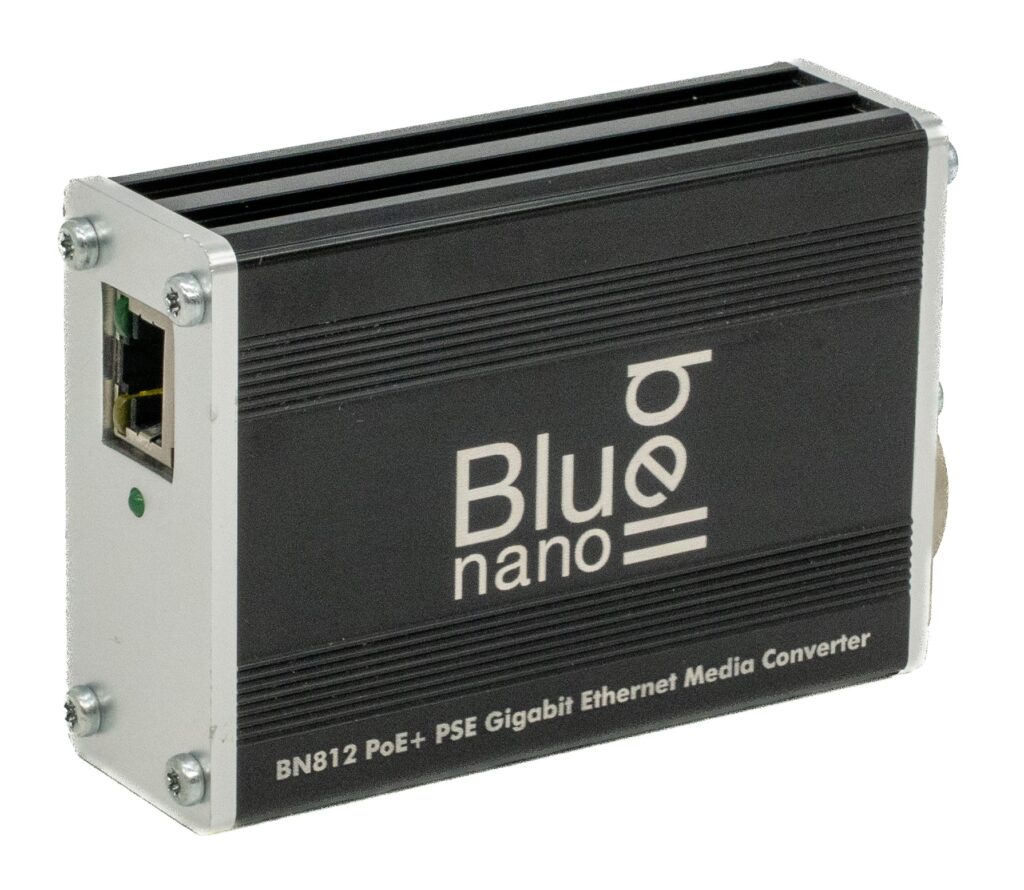

BN812
PoE+ Multi-rate Ethernet to Fibre Converter Module 10/100/1000BaseT
Description
The BN812 is a multi-rate Ethernet to fibre converter equipped with PoE+ functionality that can deliver up to 30W of power over twister pair.
Ideal for use with PTZ cameras with NDI output, offering a single-cable soiution that simplifes installation and maintenance. The BN812 can convert copper twister pair data speeds of 10/100/1000Base-T to fibre optic 100Base-FX or 1000Base-X formats. Providing a reliable and high-perfomance link. The converter can be powered by a standard 12V power source, and it’s LED indicators provade a clear indication of power, network and opitcal activity.
With various SFP options available, including Multimode, Single Mode, signal or dual fibre, CWDM, and long-reach up to 120km, the BN812 can be customised to meed specific requirement, providing flexibility and versatility.
BN812 can be used as a remote Ethernet conversion device which can be paired with another BN810/BN812 or the rack-based BC860 or BC862 Ethernet conversion cards.
Specification
| Standards: | IEEE 802.3i (10Base-T) |
| IEEE 802.3u (Fast Ethernet) | |
| IEEE 802.3ab (Gigabit Ethernet) | |
| IEEE 802.3z (1000BASE-X) | |
| IEEE 802.3x (flow control) | |
| IEEE 802.3af (PoE) | |
| IEEE 802.3at (PoE+) | |
| Ports: | RJ45 (10/100/1000BASE-T) |
| SFP (1000BASE-X) | |
| XLR4-M (POWER IN) | |
| Transmission Distance | Single Mode: 20/40/80/120km (SFP dependant) |
| Multimode: 550m / 2km (SFP dependant) | |
| UTP/STP: | 100m |
| LED indication: | Power/PoE Status |
| FX LINK/ACT | |
| TP LINK/ACT | |
| Power: | 11-17VDC |
| 2W Typ. +PoE Power (SFP dependant) | |
| 35W Max | |
| Dimensions: | 95 x 64 x 30mm excluding connectors |
| Weight: | xxxg |
| Operating Temperature: | 0°C – 70°C |
Related products
Ordering info
| BN812/S/2/13/LH | Singlemode Dual Fibre 10/100/1000BaseT Ethernet to 1000Base-EX Fibre Converter
module (1310nm). 40km Long Haul Transceiver.Includes PS12 power supply |
| BN812S/2/CWDM/xx/WB | Singlemode Dual Fibre 10/100/1000BaseT Ethernet to 1000Base-EX Fibre Converter
module (CWDM). CWDM 40km Long Haul Transceiver. Includes PS12 power supply |
| BN812S/13/15 | Singlemode Single Fibre 10/100/1000BaseT Ethernet to 1000Base-LX10 Fibre Converter
module (1310nm). Used in conjunction with BN812/S/15/13 as a matched pair. Includes PS12 power supply |
| BN812S/15/13 | Singlemode Single Fibre 10/100/1000BaseT Ethernet to 1000Base-LX10 Fibre Converter
module (1550nm). Used in conjunction with BN812/S/13/15 as a matched pair. Fitted with LC connectors as standard. Includes PS12 power supply |
| BN812 | 10/100/1000BaseT Ethernet to 1000BaseT Fibre Converter Module – No Optics Fitted.
Includes PS12 power supply |
