ShaxX-DUAL
SMPTE Hybrid Alternative Connector Kit for Power Insertion
Description
The ShaxX-DUAL System from Bluebell is a powerful and efficient solution for providing remote power insertion to two broadcast cameras simultaneously. Designed for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, 4K, 8K, and HDR cameras equipped with standard SMPTE 304M hybrid connectors, the ShaxX-DUAL enables remote power delivery over individual hybrid cables. Cameras can be located up to 300 metres away from the mains power source, ensuring flexible deployment even in challenging environments.

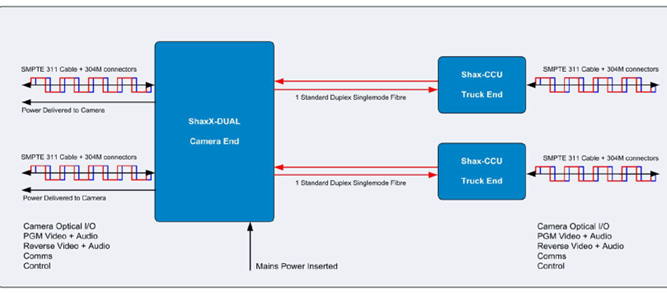

When combined with the Shax-CCU, this system enables cameras to be deployed over standard singlemode optical fibre networks, often pre-installed in stadiums, arenas, and concert halls. The ShaxX-DUAL replaces traditional fibre/copper hybrid cables with standard fibre while relaying all communications and signals, freeing cameras from local power constraints. It is switch-selectable for compatibility with major camera manufacturers, ensuring seamless integration and straightforward setup.

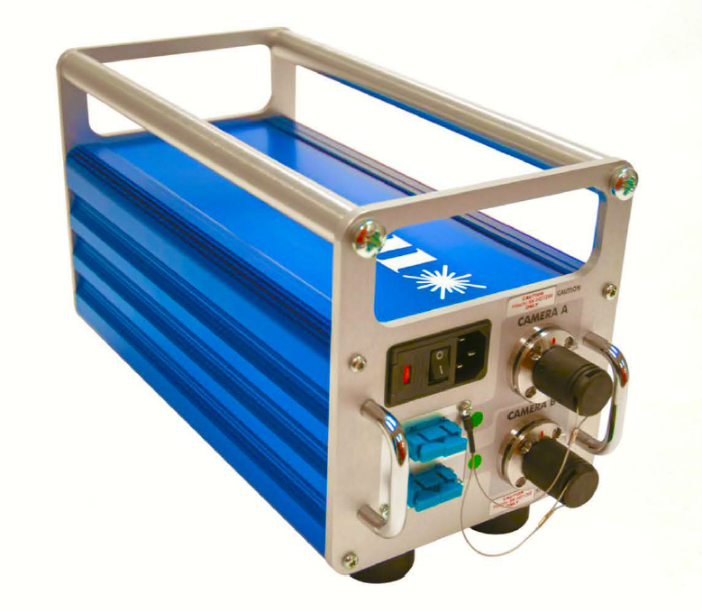

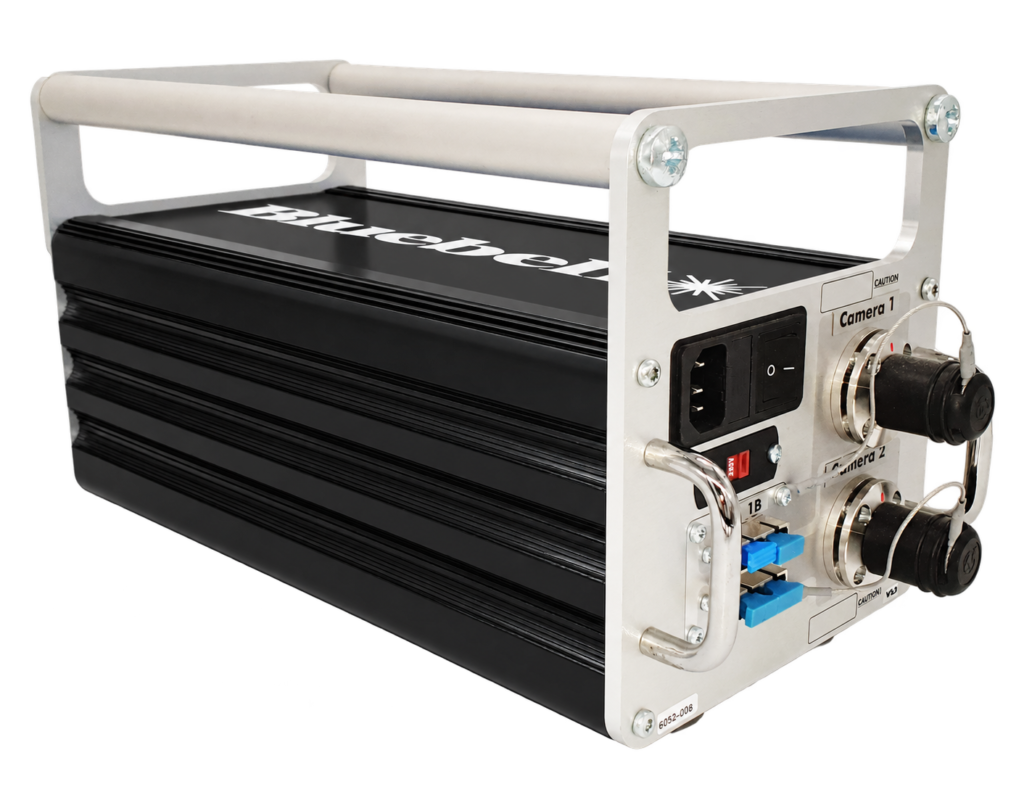

Built for demanding broadcast applications, the ShaxX-DUAL is housed in a robust, ruggedised aluminium enclosure, making it ideal for Outside Broadcast and Flyaway scenarios. It can also be combined with Bluebell’s BC Series Multi-format Interfaces, allowing signals from multiple cameras to be carried over a single cable, significantly reducing rigging complexity and installation time.
Front-panel LEDs provide instant operational feedback on the link status between each camera and CCU, ensuring quick troubleshooting and reliable performance.
For further information about available configurations and options, contact the Bluebell Sales Office.
Specification
| Optical I/O Camera Side | |
| Connector | 2 x LEMO PHW 3K.93C Free Socket |
| Wavelength | Independent |
| Optical I/O | |
| Connector | 2 x Female ST, SC, FC
See Ordering Information |
| Wavelength | Independent |
| Optical Loss | < 1 dB per end |
| Mains Input | |
| IEC Mains Inlet | Selectable IP rating 115 or 230 V ac. |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC |
| Electrical | Complies with EN 61000-6-1,
EN61000-6-2 |
| RoHS | Complies with Directive 2002/95/EC |
| IP Rating | IP50 |
| General Specifications | |
| Dimensions | 320 x 200 x 170mm with handles
320 x 135 x 170mm without handles |
| Operating Temp | -20 to +60 0C |
| CCU Supply Voltage | 36 V dc and 240 V ac |
| Warranty | 5 Years |
| Weight | 7.5 kg |
Related products
Downloads
Ordering info
| ShaxX-DUAL-XX | Dual Channel SMPTE Hybrid Alternative Connection Kit
Used in conjunction with Shax-CCU allows hybrid fibre enabled cameras to be connected to the CCU over standard fibre networks. Power is inserted into the hybrid cable. |
| KEY /XX | Replace -XX with -ST for ST/PC connector(s)
Replace -XX with -FC for FC/PC connector(s) Replace -XX with -SC for SC/PC connector(s). N.B. ST is the standard preferred stock item. For alternatives contact the Sales Office. |
| Note: | Units are provided in Multi Camera format as the standard factory option. An individual front panel switch
for each channel allows user adjustment for Sony, Hitachi and Ikegami cameras. All Shax and ShaxX units are currently compatible with the following: Sony HDC-900/950/1000/1500/1700/2500 Contact the Sales Office for HDC-4300 and F55 camera compatibility Hitachi CU-HD1200 camera compatibility Ikegami HDK-97GX |
