BM102
.jpg)
Features
- Monitors card, power supply, and fan status in BC100 (15 slots) or BC160 (6 slots) frames
- Connects to SNMP systems via RJ45 Ethernet; includes built-in web interface
- Reports signal presence, PSU faults, fan failures, temperature, and voltage
- For updated ('new') cards, shows model, serial number, firmware/hardware version, and SFP details (e.g. power, temperature, wavelength)
- Installed in Slot 16 (BC100) or front slot (BC160)
- LED indicators show Ethernet link and activity; front panel LED indicates system operation
- Compatible with third-party SNMP software via available MIB file
BM102

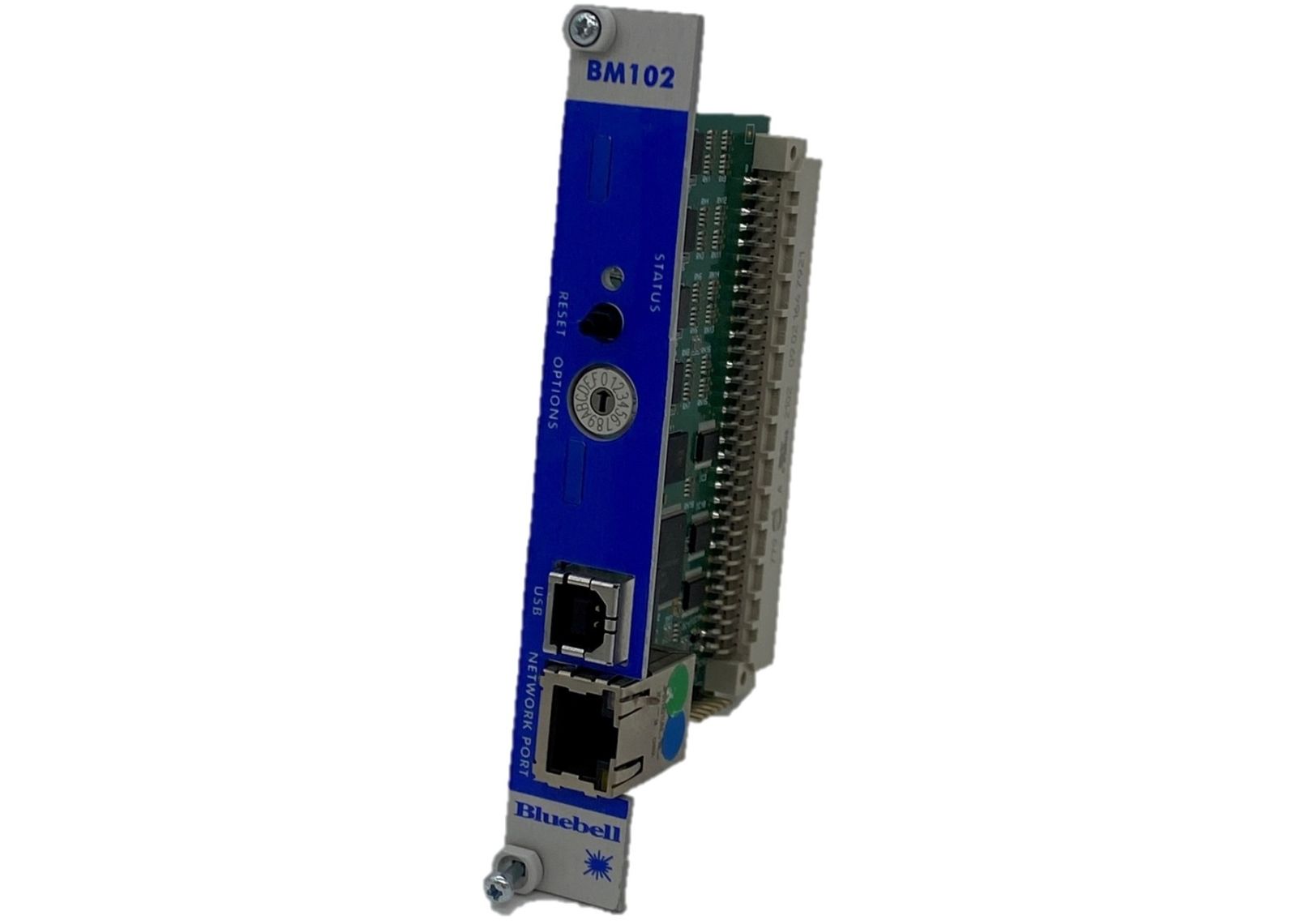

BM102 Network Monitoring Card
Description
The BM102 is an intelligent monitoring plug-in module from Bluebell Opticom, designed to provide real-time status and diagnostics for BC Series cards installed in the BC100 (3RU) and BC160 (1RU) modular frames. The BM102 monitors power supplies, fan status, frame temperature, enhanced diagnostics for all BC cards, including detailed reporting of card model, serial number, firmware/hardware revisions, and SFP status such as optical power, temperature, and voltage, ideal for more advanced monitoring needs..
Via an RJ45 Ethernet port, the module supports SNMP for integration into network management systems, and offer built-in web interfaces for convenient browser-based monitoring.
Whether used in OB trucks, studios, or fixed installations, the BM102 help simplify maintenance and provide peace of mind in critical signal transport environment.

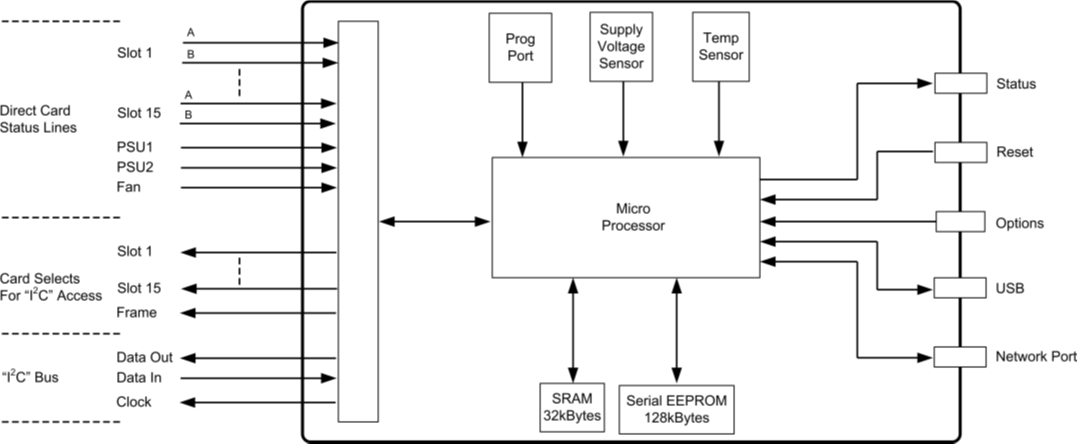

Schematic Diagram
.png)
Specifications
|
Parameters reported by both BM101 and BM102
|
|
|
From the Frame
|
PSU1, PSU2 faults
Frame temperature (sensor on the BM101/2)
Frame internal voltage
|
|
From cards in the frame
|
Signal loss Channel A, B
|
|
Parameters added on the BM102
|
|
|
From the Frame
|
Fan fault
|
|
From 'new' cards in the frame
|
Card Present
Card Type (part number)
Card Serial Number
Card Hardware revision
Card Firmware revision
Card Function (brief summary)
Signal loss Channel A, B (see note 3)
|
|
From 'new' cards fitted with an SFP
|
SFP Manufacturer
SFP Type (part number)
SFP Temperature
SFP Temperature Warning
SFP Supply Voltage
SFP Supply Voltage warning
SFP Direction (tx/rx) Ch1, 2
SFP Transmit wavelength Ch1, 2
SFP Transmit Bias current Ch1, 2
SFP Transmit Bias current warning Ch1, 2
SFP Power Ch1, 2
SFP Power Warning Ch1, 2
|
|
Depth
|
75 mm
|
|
Width
|
20mm (4HP)
|
|
Height
|
129mm (3RU)
|
|
Weight
|
170g
|
|
Power Supply
|
4.5 – 6v DC
|
|
Power Consumption
|
1.0W (160mA at +6V DC)
|
|
Electrical Connections
|
Ethernet 10Base-T
USB Standard B socket
Via the 64-way
|
|
DIN41612 connector
|
30 card status lines
2 power supply fail lines
1 fan fail line
16 slot select lines
3 ‘I2C’ signals
|
|
Operating Temp
|
-30°C to +70°C
|
Open/Download
| Title | Description | Date | Open / Download |
|---|---|---|---|
| BM102 Datasheet | Datasheet PDF | Open Download | |
| Operations & Technical Manual | Operations & Technical Manual PDF | Open Download |
Ordering Information
|
BM102 |
Network Monitoring Card with Ethernet connection for use in BC100 and BC160 frames |
