BC723
Features
- The BC723 provides serial control data over Fibre.
- Can be fitted to any BC series enclosure
- Occupies a single slot in BC series 19” rack mounting frames
- A complimentary Blue Nano unit is also available when a 19” rack-based solution is not required
- Can be supplied in multimode, singlemode, and CWDM variations to suit all applications, offering a perfect complement to the video converters.
BC723
Electrical to Optical Transceivers For Control
Description
Electrical to Optical Transceiver for Control
The BC723 is a compact stand-alone multi-format converter for control signals. Control data and GPI signals are transmitted over a pair of fibres.The BC723 can be supplied in multimode, singlemode and CWDM variations to suit all applications and is a perfect complement to video converter cards. Power is provided by a DC source of 4.5 to 17V via a 4 pin XLR or the Bluebell PS12 in-line power adapter.
The BC723 version fits in Bluebell 19” rack frames. Please contact the Sales Office for more information.
For applications requiring analogue audio in addition to serial control data, the BC623 is available.

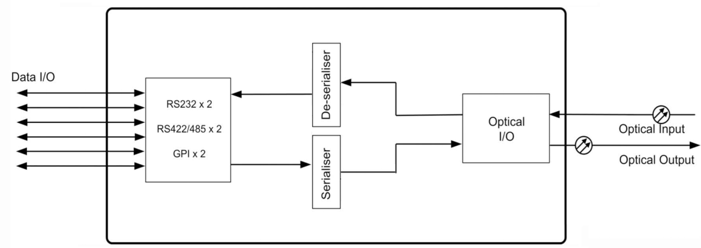

Schematic Diagram
Specifications
|
Electrical Input |
|||||||
|
Connector |
44 Pin D Type |
||||||
|
Format |
2x Analogue audio, 20 Hz-20 kHz± 0.3 dB
|
||||||
|
Optical Input/Output |
|||||||
|
Connector |
1x female LC as standard per channel |
||||||
|
|
Tx wavelength and power plus receive sensitivity are defined by the SFP fitted |
||||||
|
|
Typical values are outlined below |
||||||
|
TX Power |
-2dBm@1310nm (typical) -2dBm@1510nm (typical) 0 dBm@CWDM (typical) |
||||||
|
RX Wavelength |
1200-1610 nm |
||||||
|
RX Sensitivity |
> -24dBm@1.25 Gb/s |
||||||
|
Max I/P Power |
> -1 dBm |
||||||
|
General Card Specifications |
|
|
Depth |
60mm |
|
Width |
20mm 4HP |
|
Height |
129mm 3RU |
|
Weight |
100g |
|
Operating Temp |
-30 to 70”c |
|
Power |
3.5W |
|
No. of Slots |
1 |
|
Conformance |
|
|
EMI/RFI |
Complies with 89/336/EEC, EN55022B, EN61000-4-2, EN61000-4-4(level 2), EN61000-4-4FTB, EN61000-4-5 EN61000-4-11 |
|
Electrical |
Complies with EN61000-6-1 EN61000-6-2, EN61000-6-3, EN61000-6-4 |
|
Laser Safety |
Dependent on SFP fitted Complies with Class 1 laser product |
|
RoHS |
Complies with Directive 2002/95/EC |
|
Warranty |
5 years |
Open/Download
| Title | Description | Date | Open / Download |
|---|---|---|---|
| BC723 Datasheet | Datasheet PDF | 2025-06-24 | Open Download |
| BC723 Manual | Manual PDF | 2025-06-24 | Open Download |
Ordering Information
|
BC723/M |
Multimode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. Fitted with LC connectors. |
|
BC723/S/13/WB |
Singlemode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. (1310 nm TX and Wideband receiver). Fitted with LC connectors. |
|
BC723/S/13/15 |
Singlemode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 1 fibre. (1310 nm TX). Used in conjunction with BC723/2/15/13 as a matched pair. Fitted with LC connectors. |
|
BC723/S/15/13 |
Singlemode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. (1550 nm TX). Used in conjunction with BC723/S/13/15 as a matched pair. Fitted with LC connectors. |
|
BC723 |
Data Fibre Optic Transceiver Base Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over fibre. No Optics Fitted. |
|
BC723/S/CWDM/xx/WB |
Singlemode and Data Fibre Optic Transceiver Module. 2 x Rs232, 2 x RS422/485 and 2 x GPI over 2 fibres. (CWDM TX and Wideband receiver). Fitted with LC connectors. |
