BN723
Features
- The BN723 provides serial control data over Fibre
- The rugged design allows the unit to be deployed in OB or flypack applications.
- Can be supplied in multimode, singlemode, and CWDM variations to suit all applications, offering a perfect complement to the video to optical converters.
- Power can be supplied direct to the unit from the standard bluebell PS12 or any readily available DC supply found on-site.
- A complimentary modular BC Series card is also available when a 19” rack-based solution is required

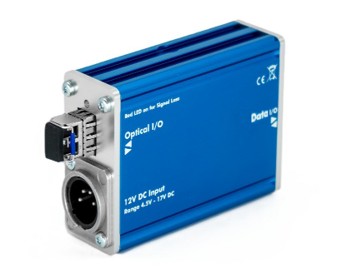

BN723
Electrical to Optical Transceiver for Serial Data Control
Description
Electrical to Optical Transceiver for Control
The BN723 is a compact stand-alone multi-format converter for control signals. Control data and GPI signals are transmitted over a pair of fibres.The BN723 can be supplied in multimode, singlemode and CWDM variations to suit all applications and is a perfect complement to video converter modules. Power is provided by a DC source of 4.5 to 17V via a 4 pin XLR or the Bluebell PS12 in-line power adapter.
The BC723 version fits in Bluebell 19” rack frames. Please contact the Sales Office for more information.
For applications requiring analogue audio in addition to serial control data, the BN623 is available.

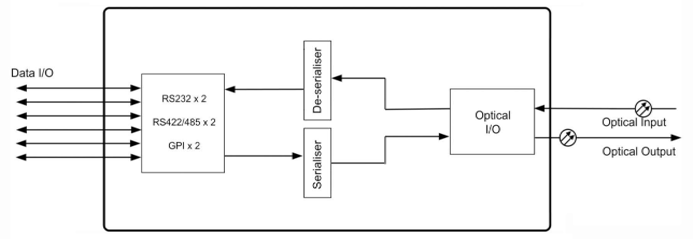

Schematic Diagram
.png)
Specifications
|
Electrical Input |
|||||||
|
Connector
|
44 Pin D Connector |
||||||
|
Format |
|
||||||
|
Optical Output |
|||||||
|
Connector |
1x female LC as standard per channel |
||||||
|
Tx Wavelength and power plus receive sensitivity are defined by the SFP fitted |
|
||||||
|
Typical values outlined below |
|
||||||
|
TX Power |
-2dBm@1310nm (typical) -2dBm@1510nm (typical) 0 dBm@CWDM (typical)
|
||||||
|
RX Wavelength |
1200-1610 nm |
||||||
|
RX Sensitivty |
|||||||
|
Max I/P power |
>-1dBm |
||||||
|
General Card Specifications |
|
|
Depth |
92mm |
|
Width |
64mm |
|
Height |
30mm |
|
|
Excluding connectors |
|
Weight |
100g |
|
Operating Temp |
-30 to 70”c |
|
Power |
2.5W |
|
Conformance |
|
|
EMI/RFI |
Complies with 89/336/EEC |
|
|
EN55022B, EN61000-4-2, EN61000-4-4(level 2), EN61000-4-4FTB, EN61000-4-5, EN61000-4-11 |
|
Electrical |
Complies with EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
|
Laser Safety |
Dependent on SFP fitted Complies with Class 1 laser product
|
|
RoHS |
Complies with Directive 2002/95/EC |
|
Warranty |
5 Years |
Open/Download
| Title | Description | Date | Open / Download |
|---|---|---|---|
| BN723 Datasheet | Datasheet PDF | 2025-06-24 | Open Download |
| BN723 Manual | Manual PDF | 2025-06-24 | Open Download |
Ordering Information
|
BN723/M |
Multimode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. Fitted with LC connectors. Includes PS12 power supply |
|
BN723/S/13/WB |
Singlemode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. (1310 nm TX and Wideband receiver). Fitted with LC connectors. Includes PS12 power supply. |
|
BN723/S/13/15 |
Singlemode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 1 fibre. (1310 nm TX). Used in conjunction with BN723/2/15/13 as a matched pair. Fitted with LC connectors. Includes PS12 power supply. |
|
BN723/S/15/13 |
Singlemode Data Fibre Optic Transceiver Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. (1550 nm TX). Used in conjunction with BN723/S/13/15 as a matched pair. Fitted with LC connectors. Includes PS12 power Supply. |
|
BN723 |
Data Fibre Optic Transceiver Base Module. 2 x RS232, 2 x RS422/485 and 2 x GPI over fibre. No Optics Fitted. Includes PS12 Power Supply. |
|
BN723/S/CWDM/xx/WB |
Singlemode and Data Fibre Optic Transceiver Module. 2 x Rs232, 2 x RS422/485 and 2 x GPI over 2 fibres. (CWDM TX and Wideband receiver). Fitted with LC connectors. Includes PS12 power supply. |
