BN812
Features
- Blue Nano PoE+ multi-rate Ethernet to fibre converter
- 10/100/1000Base-T Ethernet
- 100Base-FX or 1000Base-X formats
- 12V DC Input, 4-pin XLR connection
- 30W ouptut power
- Available in multimode, singlemode, WDM and CWDM variants
- Rugged enclosure suitable for OB applications
- 5 year warranty

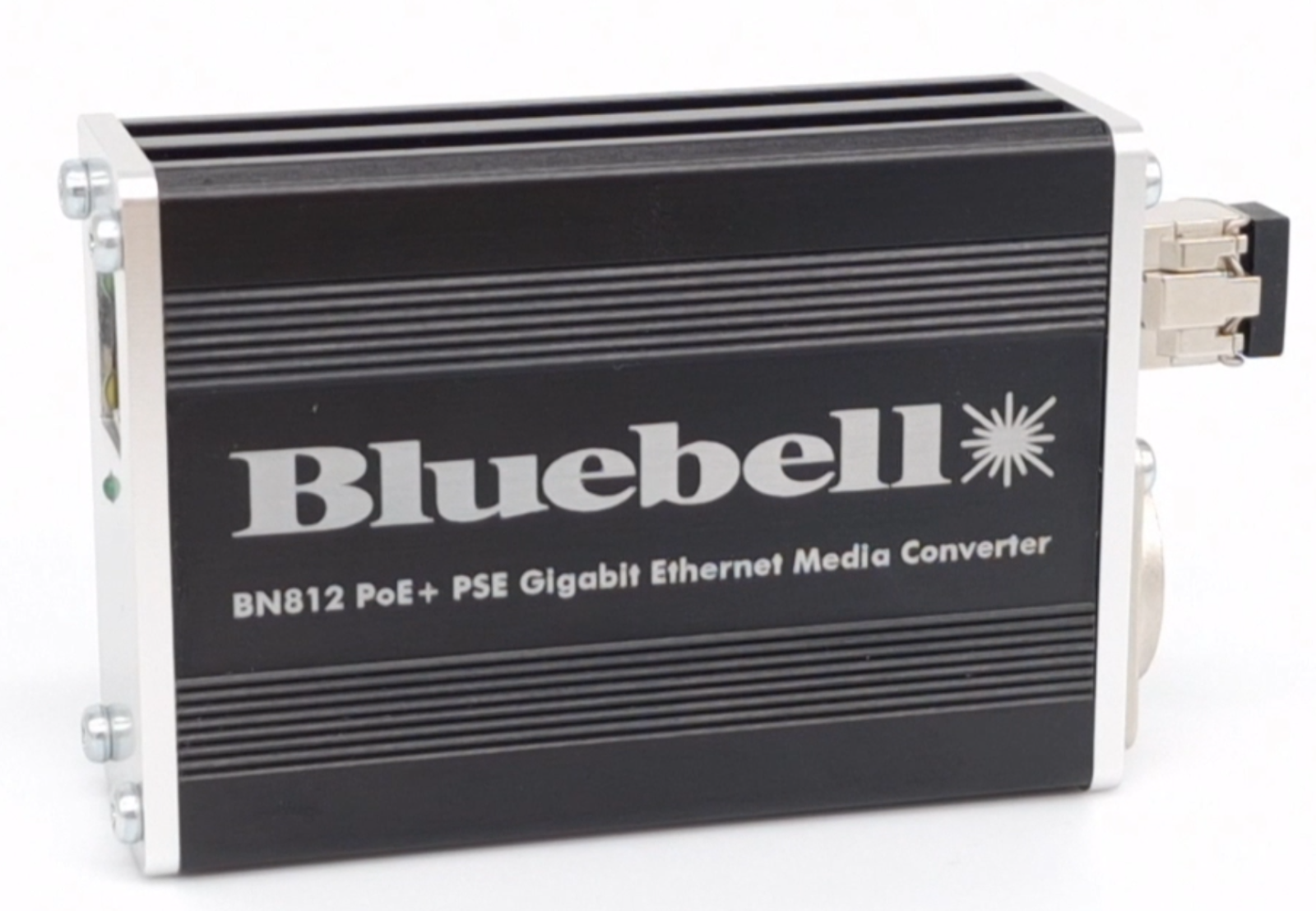

BN812
PoE+ Multi-rate Ethernet to Fibre Converter Module 10/100/1000BaseT
Description
PoE+ Multi-rate Ethernet to Fibre Converter Module 10/100/1000BaseT
The BN812 is a multi-rate Ethernet to fibre converter equiped with PoE+ functionality that can deliver up to 30W of power over twister pair.
Ideal for use with PTZ cameras with NDI output, offering a single-cable soiution that simplifes installation and maintenance. The BN812 can convert copper twister pair data speeds of 10/100/1000Base-T to fibre optic 100Base-FX or 1000Base-X formats. Providing a reliable and high-perfomance link. The converter can be powered by a standard 12V power source, and it's LED indicators provade a clear indication of power, network and opitcal activity.
With various SFP options available, including Multimode, Single Mode, signal or dual fibre, CWDM, and long-reach up to 120km, the BN812 can be customised to meed specific requirement, providing flexibility and versatility.
BN812 can be used as a remote Ethernet conversion device which can be paired with another BN810/BN812 or the rack-based BC860 or BC862 Ethernet conversion cards.

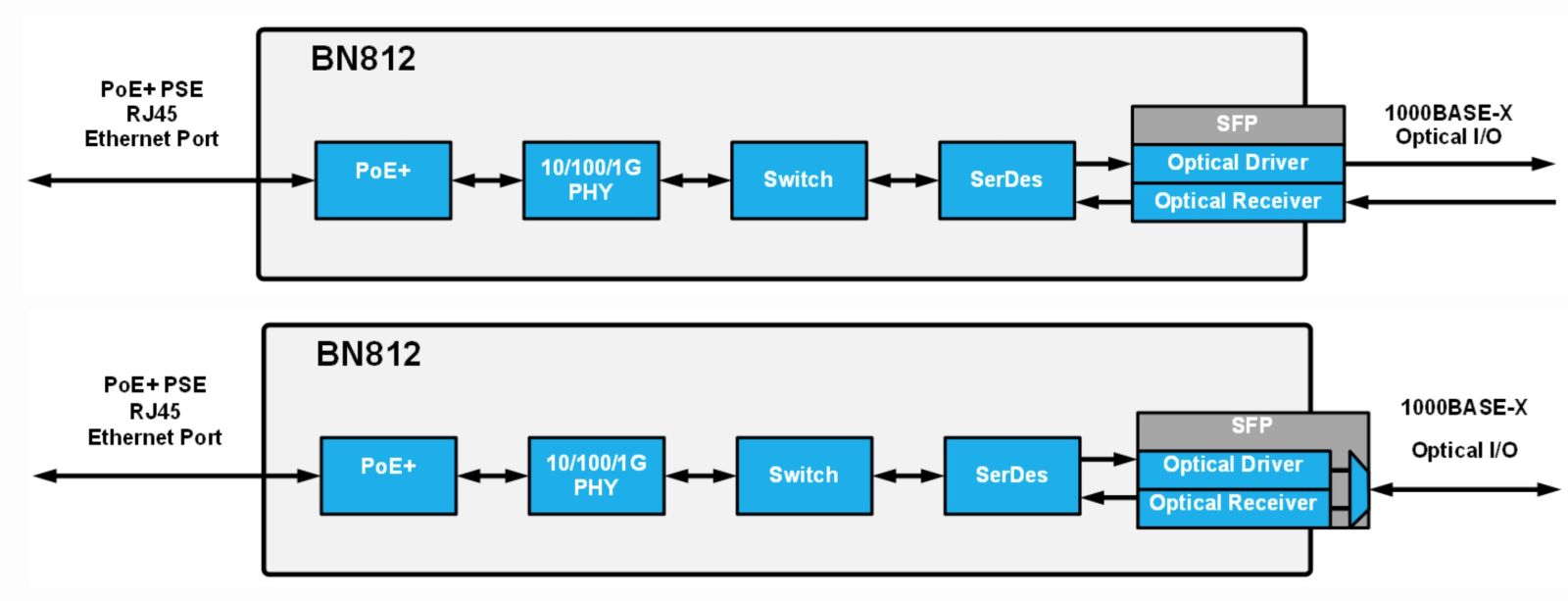

Schematic Diagram
Specifications
|
Standards: |
IEEE 802.3i (10Base-T) |
|
|
IEEE 802.3u (Fast Ethernet) |
|
|
IEEE 802.3ab (Gigabit Ethernet) |
|
|
IEEE 802.3z (1000BASE-X) |
|
|
IEEE 802.3x (flow control) |
|
|
IEEE 802.3af (PoE) |
|
|
IEEE 802.3at (PoE+) |
|
Ports: |
RJ45 (10/100/1000BASE-T) |
|
|
SFP (1000BASE-X) |
|
|
XLR4-M (POWER IN) |
|
Transmission Distance |
Single Mode: 20/40/80/120km (SFP dependant) |
|
|
Multimode: 550m / 2km (SFP dependant) |
|
UTP/STP: 100m |
|
|
LED indication: |
Power/PoE Status |
|
|
FX LINK/ACT |
|
|
TP LINK/ACT |
|
Power: |
11-17VDC |
|
|
2W Typ. +PoE Power (SFP dependant) |
|
|
35W Max |
|
Dimensions: |
95 x 64 x 30mm excluding connectors |
|
Weight: |
100g |
|
Operating Temperature: |
0°C - 70°C |
Ordering Information
|
BN812/S/2/13/LH |
Singlemode Dual Fibre 10/100/1000BaseT Ethernet to 1000Base-EX Fibre Converter module (1310nm). 40km Long Haul Transceiver.Includes PS12 power supply |
|
BN812S/2/CWDM/xx/WB |
Singlemode Dual Fibre 10/100/1000BaseT Ethernet to 1000Base-EX Fibre Converter module (CWDM). CWDM 40km Long Haul Transceiver. Includes PS12 power supply |
|
BN812S/13/15 |
Singlemode Single Fibre 10/100/1000BaseT Ethernet to 1000Base-LX10 Fibre Converter module (1310nm). Used in conjunction with BN812/S/15/13 as a matched pair. Includes PS12 power supply |
|
BN812S/15/13 |
Singlemode Single Fibre 10/100/1000BaseT Ethernet to 1000Base-LX10 Fibre Converter module (1550nm). Used in conjunction with BN812/S/13/15 as a matched pair. Fitted with LC connectors as standard. Includes PS12 power supply |
|
BN812 |
10/100/1000BaseT Ethernet to 1000BaseT Fibre Converter Module - No Optics Fitted. Includes PS12 power supply |
