BC16
CWDM MUX/DEMUX
Description
Specification
Related products
Downloads
Description

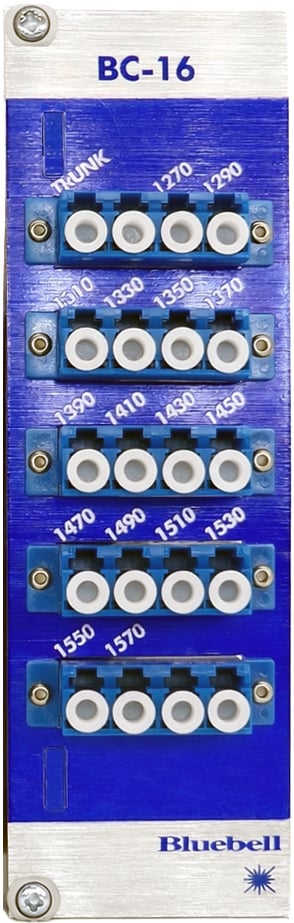

The BC18 is an 16 channel CWDM Mux/Demux card for BC series frames, combining multiple wavelengths in a compact modular format. Using standard 20nm spacing across ITU CWDM wavelengths from 1270nm to 1570nm, it delivers an efficient, cost effective multi wavelength fibre transport solution.
Specification
| Parameter | Unit | BC-16 |
| Number of Channels | 16 | |
| Channel Centre Wavelengths (λc) | nm | 1270–1570 |
| Channel Spacing | nm | 20 nm |
| Channel Passband | nm | λc ± 6.5 nm |
| Insertion Loss | dB | ≤ 2.0 |
| Passband Ripple | dB | ≤ 0.5 |
| Isolation (Adjacent Channels) | dB | ≥ 30 |
| Isolation (Non-adjacent) | dB | ≥ 40 |
| Polarisation Dependent Loss (PDL) | dB | ≤ 0.2 |
| Directivity | dB | ≥ 50 |
| Return Loss | dB | ≥ 45 |
| Connector Type | LC/UPC | |
| Operating Temperature | °C | 0 to 70 |
| Storage Temperature | °C | -10 to +80 |
| Number of Slots | 2 | |
| Width | mm | 40 |
| Height | mm | 129 |
| Depth (Excluding Connectors) | mm | 65 |
