BC-8
Coarse Wavelength Division Multiplexer/Demultiplexer
Description

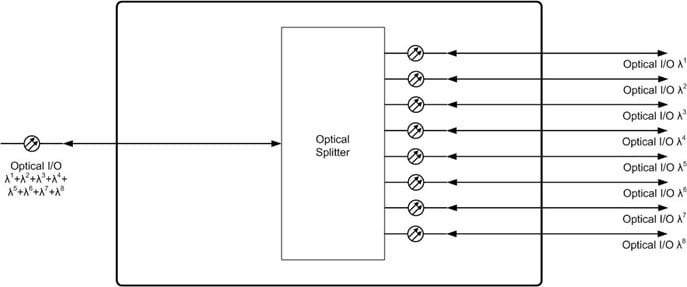

Coarse Wavelength Division Multiplexer/Demultiplexer The BC-8 is a passive device for the multiplexing or demultiplexing of different optical wavelengths onto or from a singlemode fibre optic cable. Each unit allows up to 8 channels to be combined /separated with a 20 nm wavelength spacing based around the ITU G.694.2 grid specifications. Adding additional BC-4 or BC-8 cards allows the system to transmit a total of 16 independent wavelengths on a single fibre, proving to be a very cost effective solution for system designers working with third party leased fibres or in Outside Broadcast.
For installation, the BC-8 can be housed in a rack-mounted frame or as a standalone unit. In a rack-mounted setup, it occupies a single slot in the BC100-3RU (15-slot) or BC160-1RU (6-slot) 19″ frame. For standalone applications, the BC-8 can be installed in rugged enclosures such as the BC101 (single-slot), BC102 (dual-slot), or BC120 (triple-slot), providing flexibility for diverse installation needs.
For systems requiring less capacity, the BC Series also includes the BC-4, (4-channel version) and BC-2 (2-channel version).
Specification
| Coarse Wavelength Division Multiplexer for single mode Optical Fibre Systems | |
| Channels | 8
Additional channels via parallel BC4 or BC8 and BC2 combinations |
| Centre Wavelengths | 1270/1290/1310/1330/1350/1370/1390/1410 or 1470/1490/1510/1530/1550/1570/1590/1610 |
| Optical bandwith | > 13 nm |
| Insertion loss | < 1.9 dB |
| Link loss for mux/demux pair | < 3.8 dB |
| Isolation Adjacent channel | > 30 dB |
| Non-adjacent channel | > 40 dB |
| Isolation spectral range | 1260-1620 nm |
| Return loss | > 45 dB (50 dB typ) |
| Directivity | > 50 dB |
| Polarization dependant loss | < 0.2 dB |
| NB : All CWDM systems require specific “tuned” laser transmitters with individual 20 nm window wavelengths | |
| General Specifications | |
| No. of slots | 1 or 2 |
| Depth | 60 mm |
| Width | 20 or 40 mm |
| Height | 100 mm 3RU |
| Weight | 100 g |
| Operating Temp | 0 to +70 0C |
| Max Optical Power | 250 mW |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC, EN55022B,
EN61000-4-2, EN61000-4-4-(Level 2), EN61000-4-4FTB, EN61000-4-5, EN61000-4-11 |
| Electrical | Complies with EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
| Laser Safety | Dependent on SFP fitted.
Complies with Class 1 laser product |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 Years |
Ordering info
| 1 slot device | ||
| BC-8/CWDM/LC – Option A | 8-Channel CWDM Card Centre Wavelengths | 1270/1290/1310/1330/1350/1370/1390/1410 nm |
| BC-8/CWDM/LC – Option B | 8-Channel CWDM Card Centre Wavelengths | 1470/1490/1510/1530/1550/1570/1590/1610 nm |
| 2 slot device | ||
| BC-8D/CWDM/LC – Option A | 8-Channel CWDM Card Centre Wavelengths | 1270/1290/1310/1330/1350/1370/1390/1410 nm |
| BC-8D/CWDM/LC – Option B | 8-Channel CWDM Card Centre Wavelengths | 1470/1490/1510/1530/1550/1570/1590/1610 nm |
| Fitted with LC connectors as standard
For all available enclosures and frames see section “Universal Chassis and Power Supplies”. |
||
