BC372
Quad Optical <-> Electrical Interface 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI
Description
The BC372, BC372T and BC372R plug in cards are part of the Bluebell Opticom BC Series range of modular fibre interfaces, designed for use across a wide range of broadcast, live production, AV and professional media applications, including Outside Broadcast, studios, venues and fixed installations.
The cards have been designed for the transport of 4K SDI video over a fibre-optic link: typically, they will be used to connect video cameras installed at remote locations, as may be the case at large-scale sporting events, music festivals and similar OB situations. They are compatible with SD, HD, 3G, 6G and 12G SDI video standards: alternatively, they can be used for the transport of MADI data.

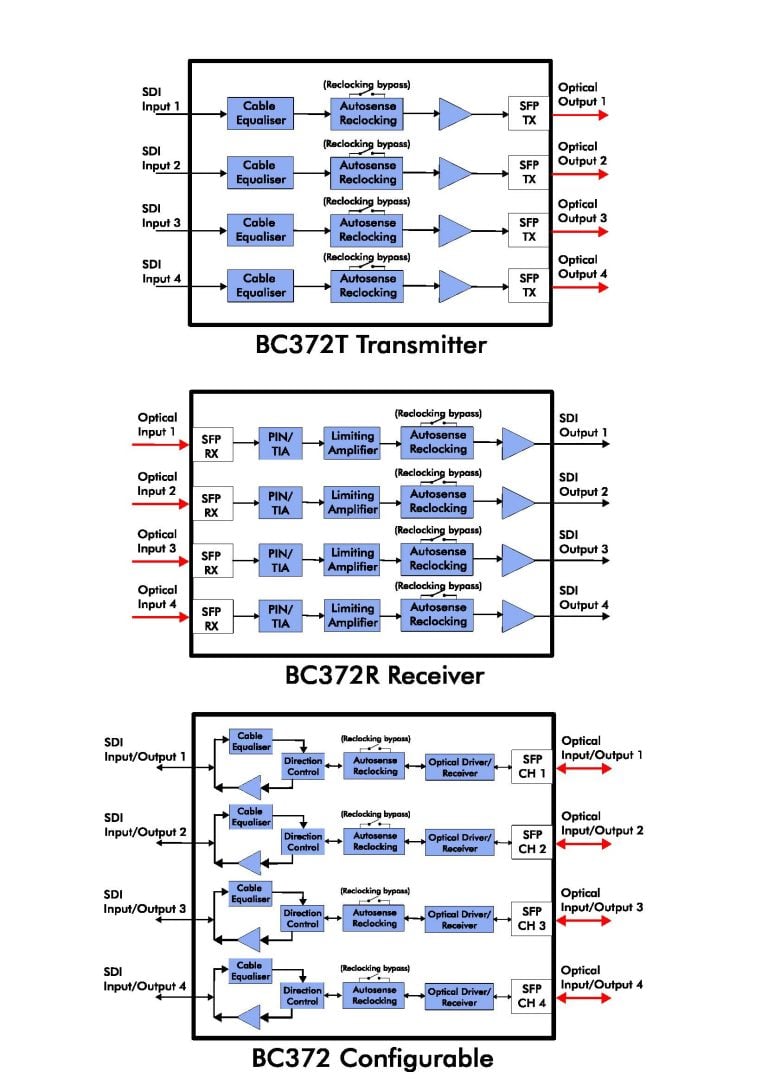

The BC372 range comprises three variants:
- BC372T transmitter – four independent channels, quad SDI inputs to quad fibre outputs
- BC372R receiver – four independent channels, quad fibre inputs to quad SDI outputs
- BC372 – four independent channels, direction configurable via on-board switches
The three variants are of similar construction, and in outward appearance differ only in the silk-screened labelling on the faceplate.
Cards will normally be used in pairs, typically with a BC372T installed at the remote end (camera station) and a BC372R at the control centre end (base station). If bidirectional operation is needed, a BC372 may be installed at both locations.
On all variants, the “copper” connections for SDI video use 12G-compliant 75-ohm BNC sockets, while the fibre optic connectivity is quad LC optical connector in two standard SFP carriers.
Single-mode fibre operation will normally be at 1310 nm; alternative CWDM grid wavelengths are also possible. The optical option is generally specified at the time of order. The optical receiver will be wideband.
The module is compact and designed for efficient rack mounting. It occupies a single slot in the BC100/BC100i (3RU) 19″ rack-mount frame, which can hold up to 15 single-slot cards, or the BC160/BC160i (1RU) 19″ frame, which accommodates up to six cards. Enhanced reporting is available via SNMP if a BM102/BM102i network card is fitted to the rack. The rack provides all necessary DC power.
For standalone applications, the BC372 cards can be housed in rugged individual enclosures. Alternatively, BN324 from the BlueNano range can also be used as a throw-down unit for outside broadcast
Specification
| Transmit Channel (Tx) | Receive channel (Rx) | |
| Electrical Inputs and Outputs | ||
| SDI Standards – conformities | Compliant with: SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M | |
| Signal Standards | 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, MADI AT 125 Mb/s | |
| Equaliser | Automatic to:
SD-SDI: 300 m @ 270 Mb/s HD-SDI: 240 m @ 1.485 Gb/s 3G-SDI: 180 m @ 2.97 Gb/s 6G-SDI: 95 m @ 5.94 Gb/s 12G-SDI: 70 m @ 11.88 Gb/s <15 dB, 5 Mb/s – 1.485 Gb/s <17 dB, 5 Mb/s – 1.485 Gb/s |
|
| Format | Re-clocked (may be bypassed) | |
| Polarity | Non Inverting | |
| Signal level | 800 mV +/-10% | |
| Timing Jitter | 0.2 UI line equalised @ 270 Mb/s
1 UI line equalised @ 1.485 Gb/s 2 UI line equalised @ 2.97 Gb/s 4 UI line equalised @ 5.94 Gb/s 8 UI line equalised @ 11.88 Gb/s |
|
| Optical Inputs and Outputs | ||
| Connector |
Optical specifications determined by SFP |
|
| Wavelength | ||
| Optical Power | ||
| Sensitivity | ||
| Laser Safety | ||
| Monitoring | ||
| Front panel | S/L: bi-colour LED per electrical input or output indicating a valid and locked signal | |
| External BC100i/BC160i rack frame | Bi-colour LED per channel indicating lock status of electrical inputs | Bi-colour LED per channel indicating lock status of optical inputs |
| External via BC100i/ BC160i rack frame screen or BM102i monitoring web page | Bi-colour virtual LED per channel indicating lock status of electrical inputs | Bi-colour virtual LED per channel indicating lock status of optical inputs |
| SNMP monitoring (via BC100i/BC160i rack frame with
BM102i card fitted) |
Lock status of electrical inputs | Lock status of optical inputs |
| General | ||
| Input | 6 – 17 V | |
| Power | 6 W Typical | |
| Depth | 75 mm (60 mm excluding connectors) | |
| Width | 20 mm | |
| Height | 129 mm | |
| Weight | 100 g (Excluding SFP) | |
| Operating Temp | -30 to +70 °C | |
Downloads
Ordering info
| BC372T | Quad Channel 12G/SDI Fibre Optic Transmitter Card, Auto-Sensing and reclocking for SDI, ASI, HD/SDI 3G-SDI, 6G-
SDI, and 12G/SDI. No Optics Fitted. |
| BC372R | Quad Channel 12G/SDI Fibre Optic Receiver Card, Auto-Sensing and reclocking for SDI, ASI, HD/SDI , 3G-SDI, 6G-SDI and 12G/SDI. No Optics Fitted. |
| BC372TR | Singlemode Quad Channel 12G/SDI Fibre Optic Transceiver Card, Auto-Sensing and relocking for SDI, ASI,HD/SDI, 3G-SDI, 6G-SDI, and 12G/SDI. Fitted with LC connectors as standard
For all available enclosures and frames see “Universal Chassis and Power Supplies”. |
