BN352- DUAL

Description

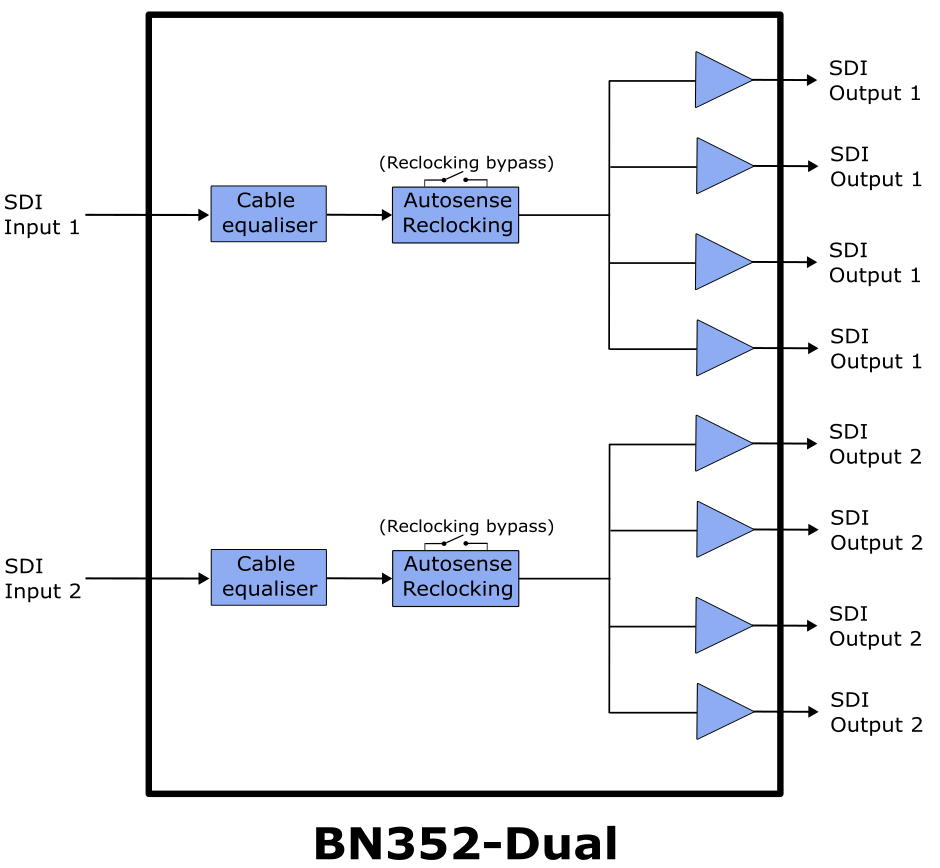

The BN352-DUAL is a rugged and versatile 12G-SDI distribution amplifier designed for broadcast and professional video production environments where high-density signal distribution is required. Featuring a dual 1:4 architecture, it distributes two independent SDI inputs to four identical, fully reclocked outputs each, providing reliable 2x 1:4 signal distribution while maintaining excellent signal integrity across all connected devices.

Supporting a wide range of SDI standards, including 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, MADI, and DVB-ASI, the BN352-DUAL automatically detects and adjusts to the incoming signal data rate. Integrated equalisation and reclocking help extend signal reach and preserve quality over longer cable runs, making it well suited to demanding high-resolution workflows up to 4K@60Hz.

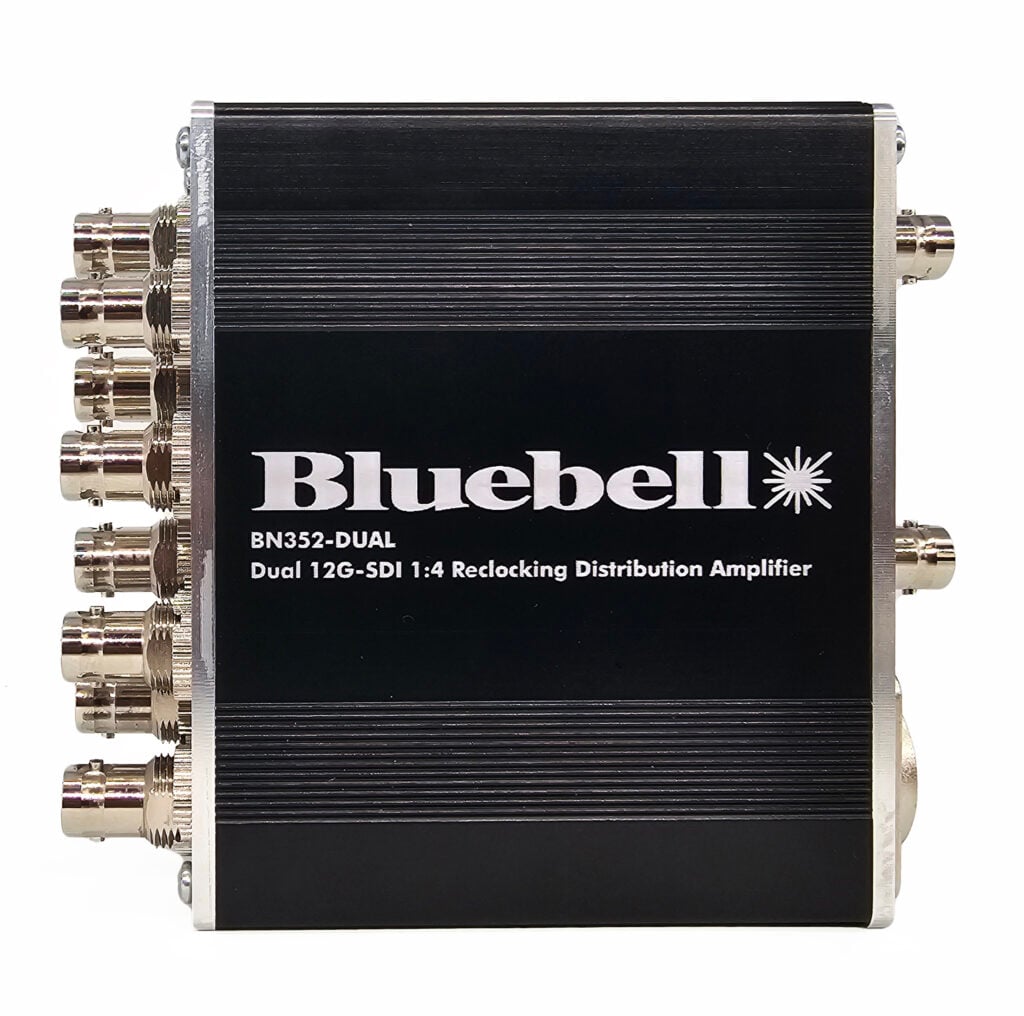

Fully compliant with key SMPTE standards, the BN352-DUAL integrates easily into existing broadcast infrastructures while delivering dependable performance in live production, studios, and Outside Broadcast applications. Its compact rugged aluminium enclosure makes it particularly suitable for OB trucks, flypacks, and space-constrained installations, while lockable BNC connectors ensure secure connections in high-pressure environments.

Additional features include LED signal status indicators for quick monitoring and a 12V DC input via 4-pin XLR for reliable power delivery, making the BN352-DUAL a robust and space-efficient solution for professional SDI signal distribution.
