ShaxX
SMPTE Hybrid Alternative Connector Kit for Power Insertion
Description
The ShaxX System from Bluebell offers a powerful solution for deploying broadcast cameras with standard SMPTE 304M hybrid connectors using ordinary singlemode optical fibre. Designed to support SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, 4K, 8K, and HDR signals, the ShaxX enables remote power insertion, allowing cameras to be powered from a mains supply located up to 300 metres away.

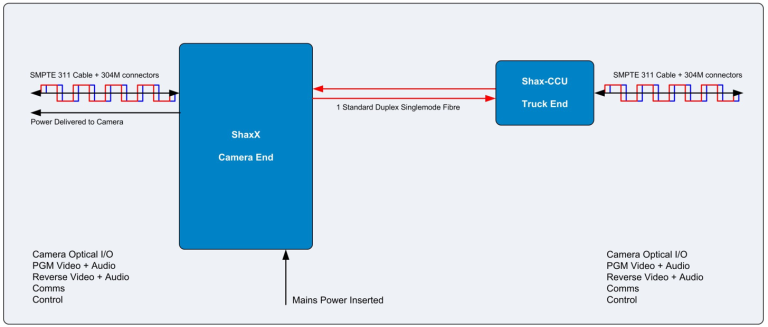

When paired with the Shax-CCU, the ShaxX system enables deployment of cameras via pre-installed singlemode optical fibre networks commonly found in stadiums, arenas, and concert halls. It eliminates the need for bulky fibre/copper hybrid cables, replacing them with lightweight fibre while maintaining full signal and communication relay between the camera and CCU. This frees cameras from the constraints of a local mains power supply, greatly enhancing deployment flexibility.

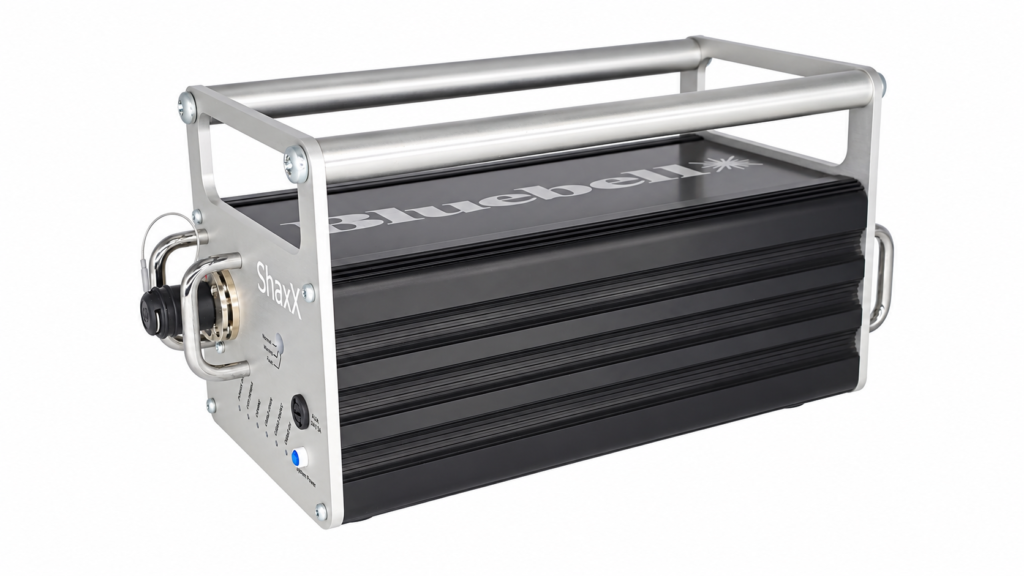

The ShaxX is built for demanding environments, housed in a robust and ruggedised aluminium enclosure, making it ideal for Outside Broadcast and Flyaway applications. It can also be paired with Bluebell’s BC Series Multi-format Interfaces, allowing signals from multiple cameras to be transmitted over a single cable. This feature reduces rigging complexity and installation time, making it a practical choice for large-scale events.
Front panel LEDs provide instant feedback on link status, ensuring operators have clear, real-time visibility of the connection between cameras and CCUs.
For further information about available configurations and options, contact the Bluebell Sales Office.
Specification
| Optical I/O | |
| Connector | 1 x LEMO PHW 3K.93C Free Socket |
| Wavelength | Independent |
| Optical I/O | |
| Connector | 2 x Female ST, SC, FC
See Ordering Information |
| Wavelength | Independent |
| Optical Loss | < 1 dB per end |
| Mains Input | |
| IEC Mains Inlet | Selectable IP rating 115 or 230 V ac. |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC |
| Electrical | Complies with EN 61000-6-1,
EN61000-6-2 |
| RoHS | Complies with Directive 2002/95/EC |
| IP Rating | IP50 |
| General Specifications | |
| Dimensions | 320 x 200 x 170mm with handles
320 x 135 x 170mm without handles |
| Operating Temp | -20 to +60 0C |
| CCU Supply Voltage | 36 V dc and 240 V ac |
| Warranty | 5 Years |
Related products
Ordering info
| ShaxX-XX | SMPTE Hybrid Alternative Connection Kit – Used in conjunction with Shax-CCU allows hybrid fibre enabled cameras to be connected to the CCU over standard fibre networks. Power is inserted into the hybrid cable. |
| Key /XX | Replace -XX with -ST for ST/PC connector(s) Replace -XX with -FC for FC/PC connector(s) Replace -XX with -SC for SC/PC connector(s).
N.B. ST is the standard preferred stock item. For alternatives contact the Sales Office. |
| Note | Units are provided in Multi Camera format as the standard factory option. An individual front panel switch for each channel allows user adjustment for Sony, Hitachi and Ikegami cameras. All Shax and ShaxX units are currently compatible with the following Sony HDC-900/950/1000/1500/1700/2500
Contact the Sales Office for HDC-4300 and F55 camera compatibility HitachiCU-HD1200 camera compatibility Ikegami HDK-97GX |
