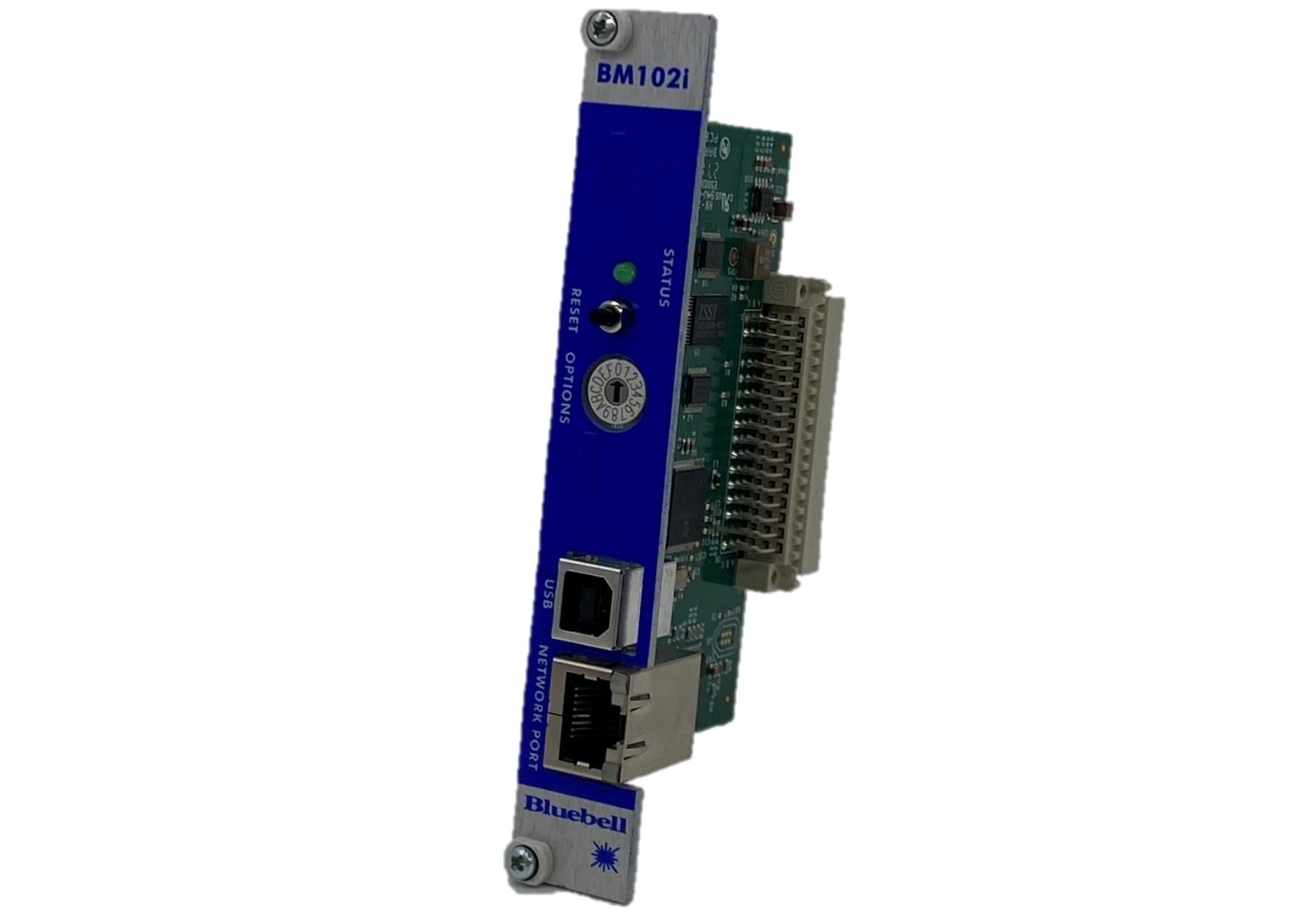

BM102i
.jpg)
Features
- Monitors all card, power, fan, and temperature statuses in BC100i (15-slot) or BC160i (6-slot) frames
- Provides data via RJ45 Ethernet to SNMP systems; includes built-in web interface
- Reports signal presence, card info, PSU and fan status, frame resets, and temperature
- For updated cards, shows model, serial number, firmware/hardware version, and SFP data
- Compatible with third-party SNMP software using available MIB file
- LED indicators on RJ45 show connection and data flow; front panel LED shows active monitoring
BM102i
BM102i Network Monitoring Card
Description
The BM102i is an intelligent monitoring plug-in module from Bluebell Opticom, designed to provide real-time status and diagnostics for BC Series cards installed in the BC100i (3RU) and BC160i (1RU) modular frames. The BM102i monitors power supplies, fan status, frame temperature, enhanced diagnostics for all BC cards, including detailed reporting of card model, serial number, firmware/hardware revisions, and SFP status such as optical power, temperature, and voltage, ideal for more advanced monitoring needs..
Via an RJ45 Ethernet port, the module supports SNMP for integration into network management systems, and offer built-in web interfaces for convenient browser-based monitoring.
Whether used in OB trucks, studios, or fixed installations, the BM102i help simplify maintenance and provide peace of mind in critical signal transport environment.
Schematic Diagram
.png)
Specifications
|
Part No.
|
Description
|
|
BM102i
|
Network Monitoring Card with Ethernet connection.
|
|
BC160i
|
19” 1RU frame for up to 6 BCxxx Cards, with Dual Redundant Power Supplies, integrated microprocessor-based card/frame monitoring and 3.8” touchscreen. Monitoring card is optional and accessible via dedicated slot in the front of the frame.
|
|
BC100i
|
19” 3RU frame for up to 15 BCxxx Cards, with Dual Redundant Power Supplies, integrated microprocessor-based card/frame monitoring and 7” touchscreen. Monitoring card is optional and accessible via dedicated rear slot.
|
|
PS100i
|
90-250VAC 100-Watt Power Supply for BC100i frame.
Two required per frame for redundancy.
|
|
Optical Flight Case
|
Ruggedised aluminium flight case housing a BC100i 3RU frame. Any combination of cards, including WDM & CWDM, can be fitted for complete flexibility. Dual mains inputs with forced air cooling and a rugged rear panel is fitted with BNC, XLR and optical connectors as necessary. Contact the UK Sales Office for a written quotation.
|
|
BM102i General Specifications
|
|
|
Width
|
20mm (4HP)
|
|
Height
|
129mm (3RU)
|
|
Depth
|
75mm
|
|
Weight
|
170g
|
|
Power supply
|
4.5 - 6V DC
|
|
Power consumption
|
1.0W (160mA at +6V DC)
|
|
Operating temperature range
|
-30°C to +70°C
|
|
Electrical connections
|
48-way DIN41612 connector
USB Standard B socket
Ethernet 10BASE-T
|
|
Warranty
|
5 years
|
|
Conformities
|
|
|
EMI/RFI
|
89/336/EEC, EN55022B, EN61000-4-2,
EN61000-4-4 (Level 2), EN61000-4-4FTB,
EN61000-4-5, EN61000-4-11
|
|
Electrical
|
EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4
|
|
RoHS
|
Directive 2002/95/EC
|
Open/Download
| Title | Description | Date | Open / Download |
|---|---|---|---|
| BM102i Datsheet | Datasheet PDF | Open Download | |
| Operations & Technical Manual | Operations & Technical Manual PDF | Open Download |
Ordering Information
|
BM102i |
Network Monitoring Card with Ethernet connection for use in BC100i and BC160i frames |
