ShaxX-LITE
SMPTE Hybrid Alternative Connector Kit for Power Insertion
Description
The ShaxX-LITE System from Bluebell is a powerful and efficient solution for providing remote power insertion to broadcast cameras. Designed for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, 4K, 8K, and HDR cameras equipped with standard SMPTE 304M hybrid connectors, the ShaxX-LITE enables remote power delivery over individual hybrid cables. Cameras can be located up to 300 metres away from the mains power source, ensuring flexible deployment even in challenging environments.

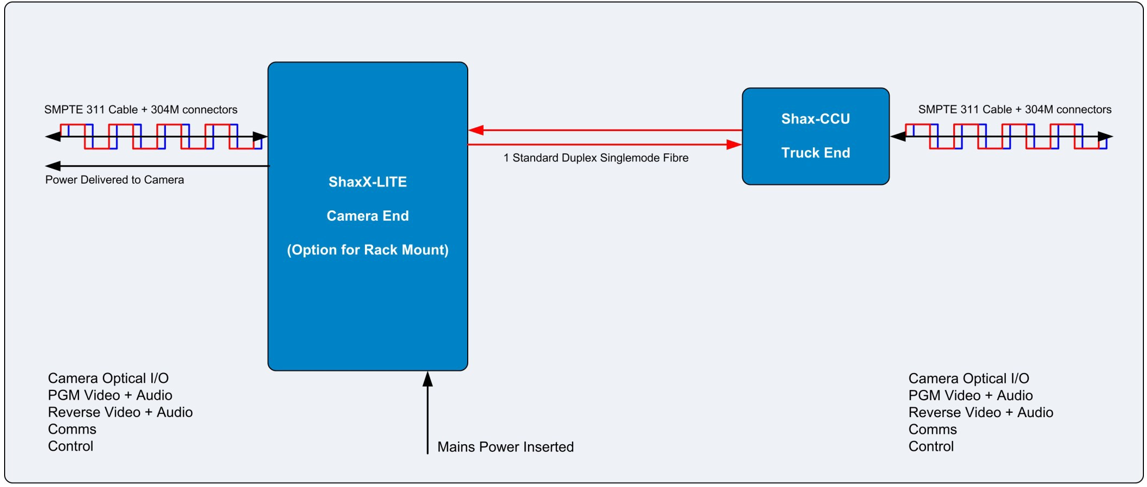

When combined with the Shax-CCU, this system enables cameras to be deployed over standard singlemode optical fibre networks, often pre-installed in stadiums, arenas, and concert halls. The ShaxX-DUAL replaces traditional fibre/copper hybrid cables with standard fibre while relaying all communications and signals, freeing cameras from local power constraints. It is switch-selectable for compatibility with major camera manufacturers, ensuring seamless integration and straightforward setup.

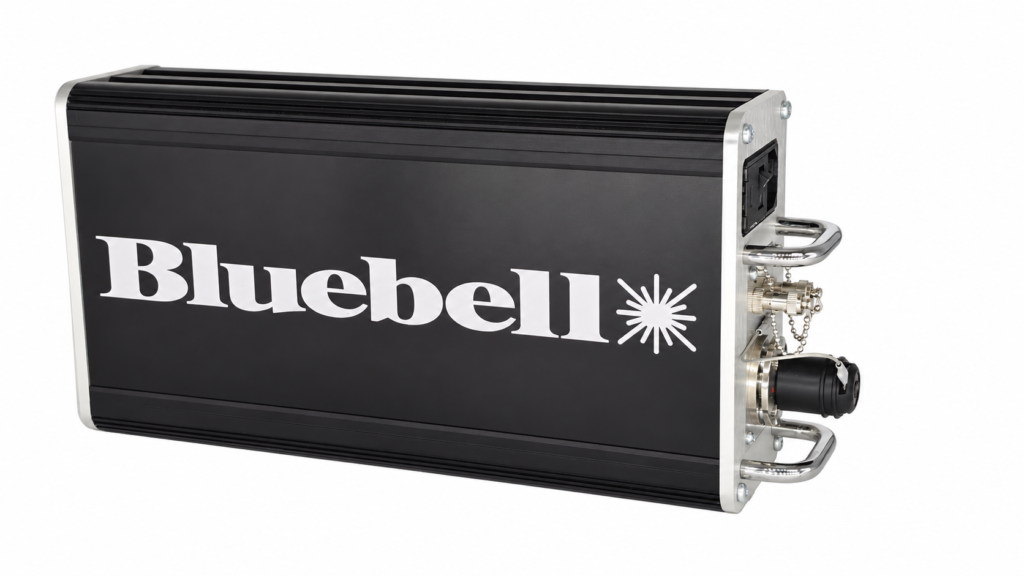

Built for demanding broadcast applications, the ShaxX-LITE is housed in a robust, ruggedised aluminium enclosure, making it ideal for Outside Broadcast and Flyaway scenarios. It can also be combined with Bluebell’s BC Series Multi-format Interfaces, allowing signals from multiple cameras to be carried over a single cable, significantly reducing rigging complexity and installation time.
Front-panel LEDs provide instant operational feedback on the link status between each camera and CCU, ensuring quick troubleshooting and reliable performance.
For further information about available configurations and options, contact the Bluebell Sales Office.
Specification
| Optical I/O Camera Side | |
| Connector | 1 x LEMO PHW 3K.93C Free Socket |
| Wavelength | Independent |
| Optical I/O | |
| Connector | 2 x Female ST, SC, FC
See Ordering Information |
| Wavelength | Independent |
| Optical Loss | < 1 dB per end |
| Mains Input | |
| IEC Mains Inlet | Selectable rating 115 or 230 V ac. |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC |
| Electrical | Complies with EN 61000-6-1,
EN61000-6-2 |
| RoHS | Complies with Directive 2002/95/EC |
| IP Rating | IP50 |
| General Specifications | |
| Dimensions | 320 x 87 x 170mm without handles
|
| Operating Temp | -20 to +60 0C |
| CCU Supply Voltage | 36 V dc and 240 V ac |
| Warranty | 5 Years |
| Weight | 3.5 kg |
Related products
Downloads
Ordering info
| ShaxX-LITE-XX | SMPTE Hybrid Alternative Connection Kit – Used in conjunction with Shax-CCU allows hybrid fibre enabled cameras to be connected to the CCU over standard fibre networks. Power is inserted into the hybrid cable. |
| ShaxX-LITE-2U-RACK | 19″ 2U Mounting Plate for fixing 2 x ShaxX-LITE into a 19″ cabinet or flight case.
Allows 2 x ShaxX-LITE to mounted side by side in a 19″ cabinet. Support for the rear of the ShaxX-LITE units in the cabinet is recommended. |
| Key /XX | Replace -XX with -ST for ST/PC connectors. ST is the standard preferred stock item.
Replace -XX with -FC for FC/PC connectors Replace -XX with -SC for SC/PC connectors |
| Note: | Units are provided in Multi Camera format as the standard factory option. An individual front panel switch for each channel allows user adjustment for certain Sony, Hitachi and Ikegami cameras. All Shax and ShaxX units are currently compatible with the following Sony HDC-900/950/1000/1500/1700/2500
Contact the Sales Office for HDC-4300 and F55 camera compatibility HitachiCU-HD1200 camera compatibility Ikegami HDK-97GX |
