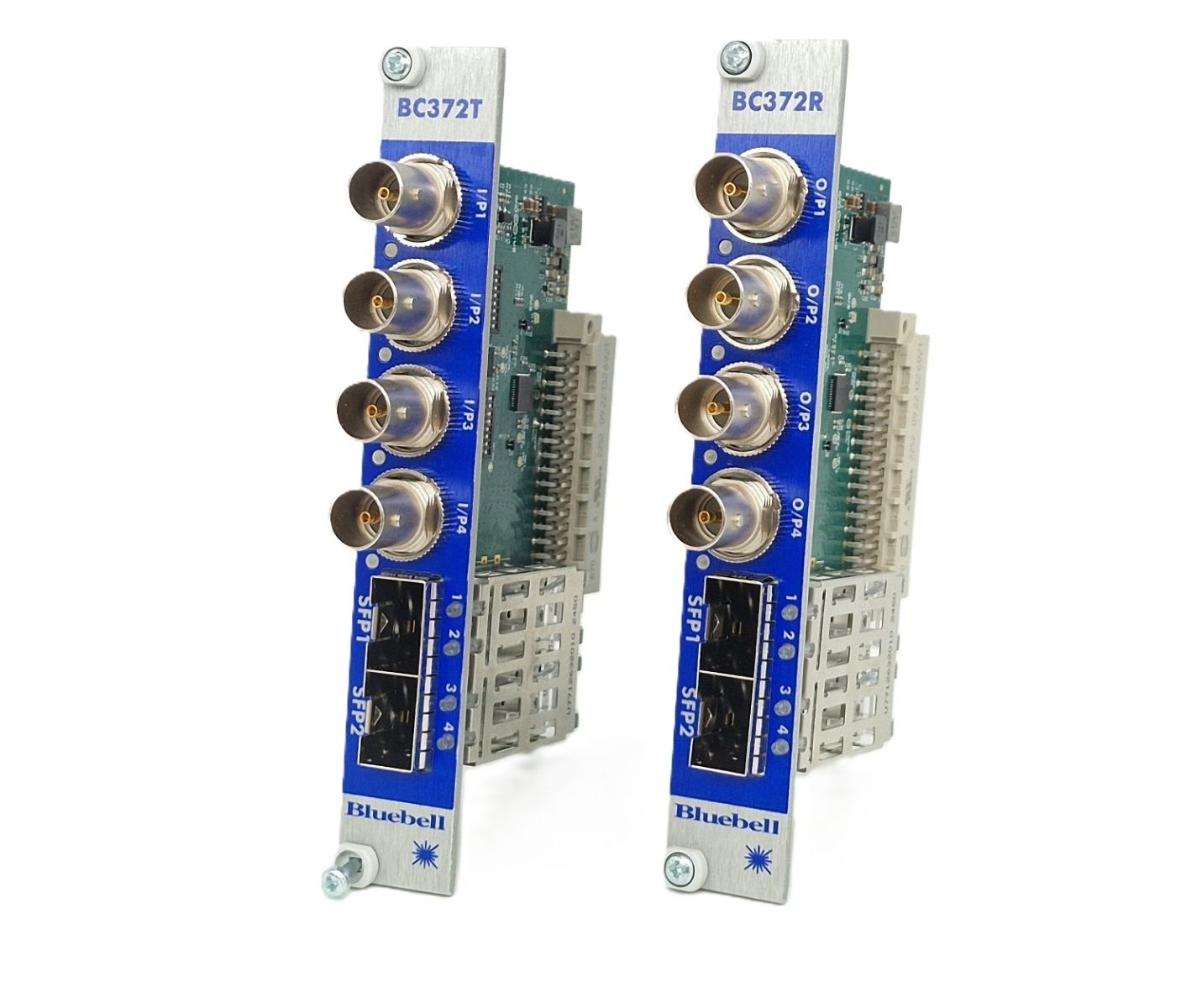

BC372
.jpg)
Features
- Three variants of the BC372 - BC372T, BC372R and BC372TR.
- SDI Electrical to/from Optical conversion for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, and ASI signals
- Supports data rates from 50 Mb/s to 12 Gb/s
- Integrated signal reclockers for enhance performance
- CWDM variants available for extended fibre applications
- Fits into the BC100 or BC100i (3RU) frame, which holds up to 15 single-slot cards (up to 60 SDI channels)
- Can also be used with the BC160 or BC160i (1RU) frame, which holds 6 single-slot cards (up to 24 SDI channels)
- 5 year warranty
BC372
Quad Optical <-> Electrical Interface 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI
Description
The BC372T, BC372R, BC372TR, are versatile plug-in cards from the Bluebell Opticom BC Series, specifically designed for reliable transport of 4K SDI video over fibre-optic links. These modular interfaces are ideal for demanding applications such as TV Outside Broadcast (OB), studio setups, large-scale sporting events, and music festivals. Compatible with SD, HD, 3G, 6G, and 12G SDI standards, they also support the transport of MADI data.
There are three variants in the BC372 series, these are:
- BC372T Transmitter: Quad electrical SDI inputs to quad optical outputs.
- BC372R Receiver: Quad optical inputs to quad electrical SDI outputs.
- BC372TR Transceiver: Channel 1 and 2 acts as transmitter. Channel 3 and 4 acts as receivers
All variants share a similar physical design, with the primary difference being the labelling on their faceplates. The BC372 Series offers a reliable, interference-free solution for extending the range of SDI video signals, ensuring exceptional performance across a wide range of broadcast and live production scenarios.
Cards are typically used in pairs: a BC372T at the remote location (e.g., camera station) is paired with a BC372R at the control centre (base station). For bidirectional operations, a BC372TR can be installed at both ends, providing simultaneous transmission and reception.
On all variants, the “copper” connections for SDI video use 12G-compliant 75 ohm BNC sockets, while the fibre optic connectivity is a dual LC optical connector in a standard SFP carrier.
Singlemode fibre operation will normally be at 1310 nm; alternative CWDM grid wavelengths are also possible. The optical option is generally specified at the time of order. The optical receiver will be wideband.
The module is compact and designed for efficient rack mounting. It occupies a single slot in the BC100/BC100i (3RU) 19″ rack-mount frame, which can hold up to 15 single-slot cards, or the BC160/BC160i (1RU) 19" frame, which accommodates up to six cards. Enhanced reporting is available via SNMP if a BM102/BM102i network card is fitted to the rack. The rack provides all necessary DC power.
For standalone applications, the BC372 cards can be housed in rugged individual enclosures. Alternatively, BN324 from the BlueNano range can also be used as a throw-down unit for outside broadcast.

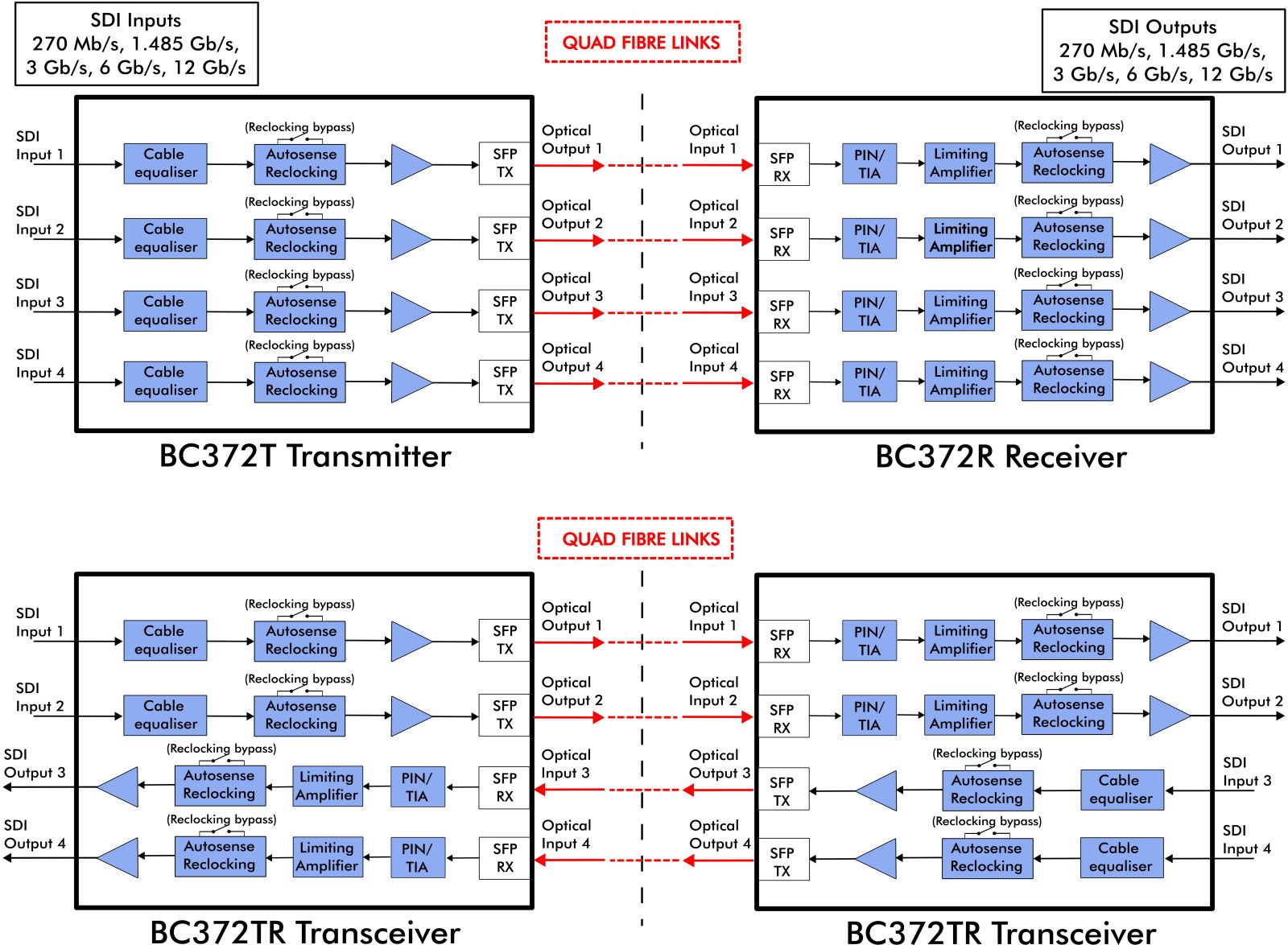

Schematic Diagram
_PS.jpg)
Specifications
|
Electrical Input
|
Connector
|
75 Ohm BNC per IEC 60169-8 Amendment 2
|
|
|
Return Loss
|
<-15dB to 1.485GHz
|
|
|
|
<-10dB to 3GHz
|
|
|
|
<-7dB to 6GHz
|
|
|
|
<-4dB to 12GHz
|
|
|
Standards
|
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 292, SMPTE ST 259, DVB-ASI
|
|
|
Polarity
|
Non-inverting
|
|
|
Equalisation
|
Automatic rate detection and cable equalisation
|
|
|
|
70m @ 11.88Gbps
|
|
|
|
90m @ 5.94Gbps
|
|
|
|
170m @ 2.97Gbps
|
|
|
|
240m @ 1.485Gbps
|
|
|
|
400m @ 270Mbps
|
|
Electrical Output
|
Connector
|
75 Ohm BNC per IEC 60169-8 Amendment 2
|
|
|
Return Loss
|
<-15dB to 1.485GHz
|
|
|
|
<-10dB to 3GHz
|
|
|
|
<-7dB to 6GHz
|
|
|
|
<-4dB to 12GHz
|
|
|
Standards
|
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 292, SMPTE ST 259, DVB-ASI
|
|
|
Polarity
|
Non-inverting
|
|
|
Signal Level
|
800 mV +/- 10%
|
|
|
DC Offset
|
0 +/- 0.5 V
|
|
Optical Input*
|
Connector
|
LC/PC
|
|
|
Wavelength
|
1260-1620 nm
|
|
|
Standards
|
SMPTE ST 297
|
|
|
Sensitivity @12G
|
-13dBm (max)
|
|
|
Sensitivity @<=6G
|
-14dBm (max)
|
|
|
Receiver Overload
|
-2dBm (min)
|
|
Optical Output*
|
Connector
|
LC/PC
|
|
|
Standards
|
SMPTE ST 297
|
|
|
Power
|
1 to -5 dBm
|
|
Power
|
Connector
|
XLR4
|
|
|
Voltage
|
5-17VDC
|
|
|
Power *
|
3W typ
|
|
General
|
Dimensions (HxWxD)
|
129mm (3RU) x 20mm x 60mm (Excluding connectors)
|
|
|
Weight
|
100g
|
|
|
Operating Temperature*
|
0 to +70°C
|
|
|
Warranty
|
5 Years
|
|
* Specifications determined by SFP fitted. Typical values shown
|
||
Ordering Information
|
BC372T/S/12G/13/13
|
Singlemode Quad Channel 12G/6G/3G/HD/SD-SDI Fibre Optic Transmitter Module, Auto-Sensing for 12G/6G/3G/HD/SD-SDI (4 x 1310nm). Fitted with LC connectors.
|
|
BC372T/12G/S/CWDM
|
Singlemode Quad Channel 12G/6G/3G/HD/SD-SDI Fibre Optic Transmitter Module, Auto-Sensing for 12G/6G/3G/HD/SD-SDI (CWDM). Fitted with LC connectors.
|
|
BC372R/S/12G
|
Singlemode Quad Channel 12G/6G/3G/HD/SD-SDI Fibre Optic Receiver Module with Quad Outputs, Auto-Sensing for 12G/6G/3G/HD/SD-SDI. Fitted with LC connectors.
|
|
BC372TR/S/12G
|
Singlemode Quad Channel 12G/6G/3G/HD/SD-SDI Fibre Optic Transeiver Module 12G/6G/3G/HD/SD-SDI. Fitted with LC connectors.
|
|
BC372T
|
Singlemode Quad Channel 12G/6G/3G/HD/SD-SDI Fibre Optic Transmitter Module, Auto-Sensing for 12G/6G/3G/HD/SD-SDI. No Optics Fitted.
|
|
BC372R
|
Singlemode Quad Channel 12G/6G/3G/HD/SD-SDI Fibre Optic Receiver Module with Quad Outputs, Auto-Sensing for 12G/6G/3G/HD/SD-SDI. No Optics Fitted.
|
|
BC372TR
|
Singlemode Quad Channel 12G/6G/3G/HD/SD-SDI Fibre Optic Transeiver Module 12G/6G/3G/HD/SD-SDI. No Optics Fitted.
|
